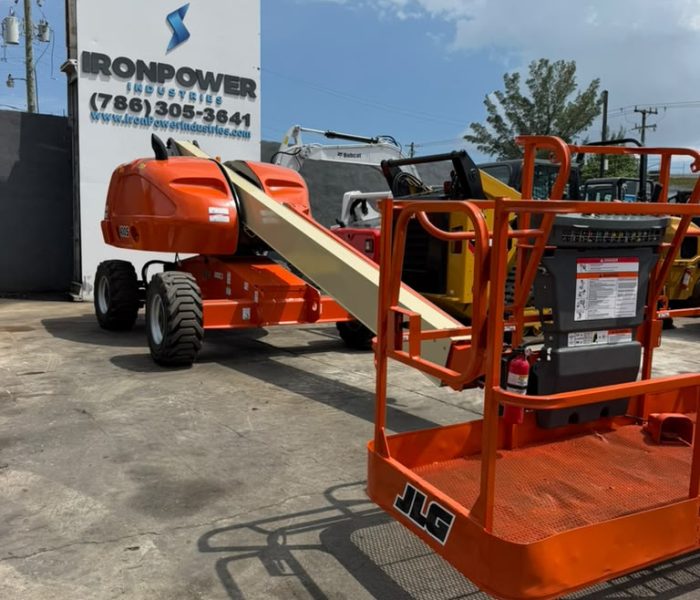

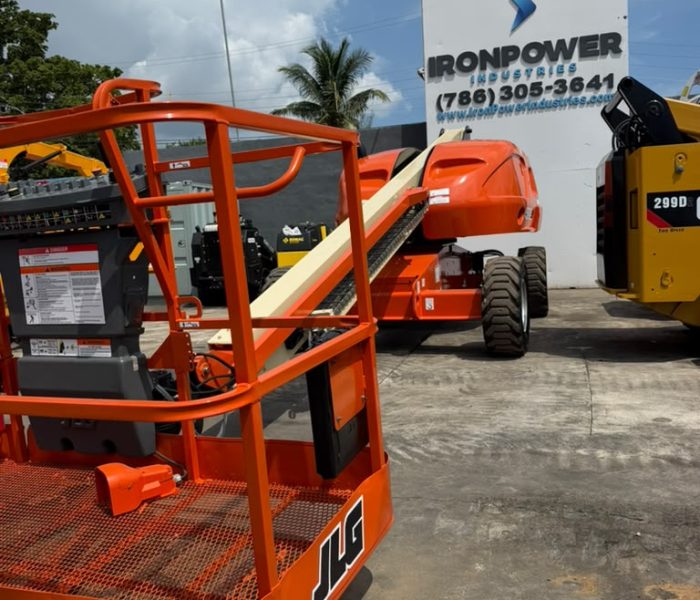

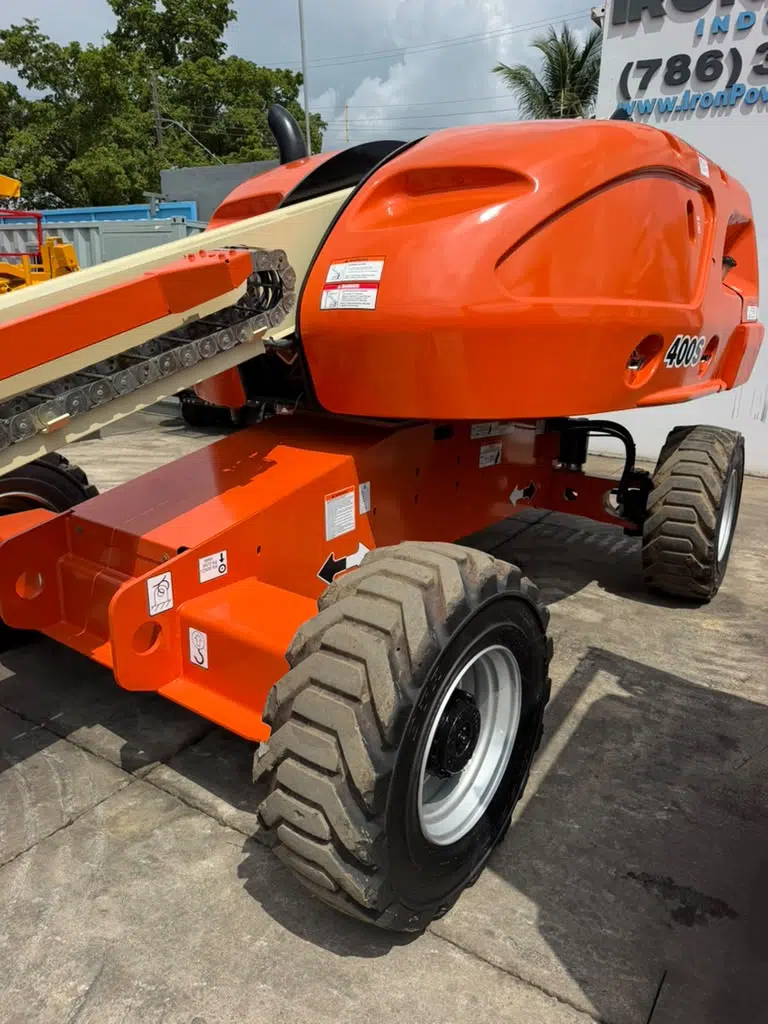

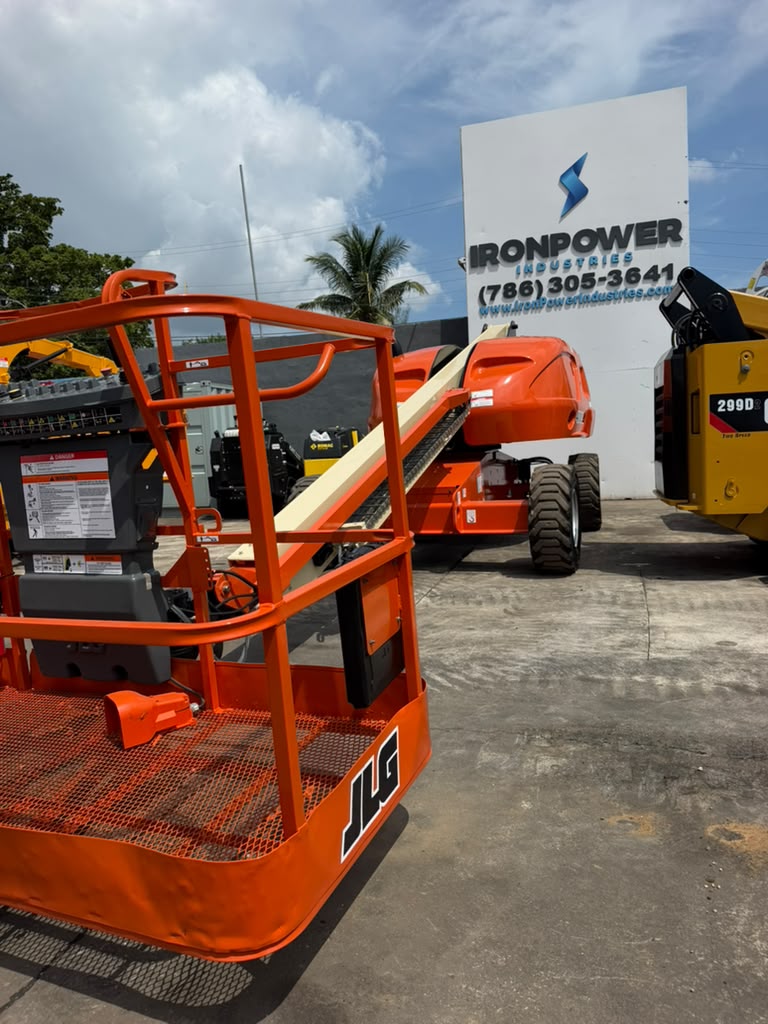

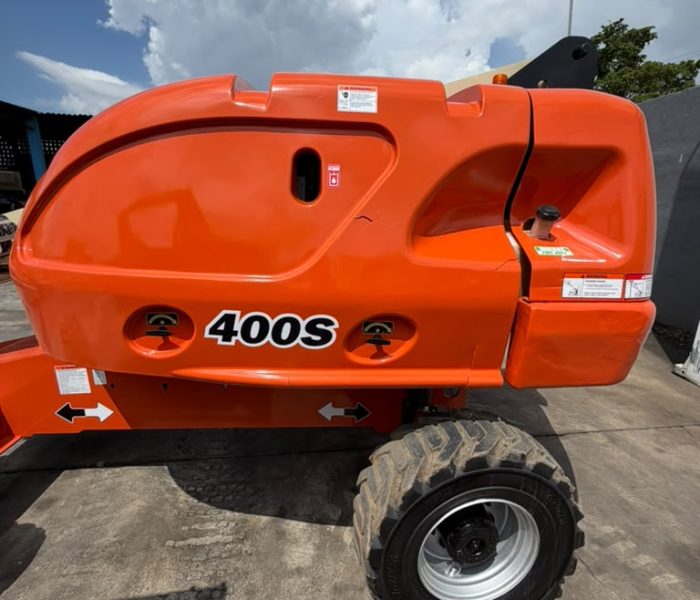

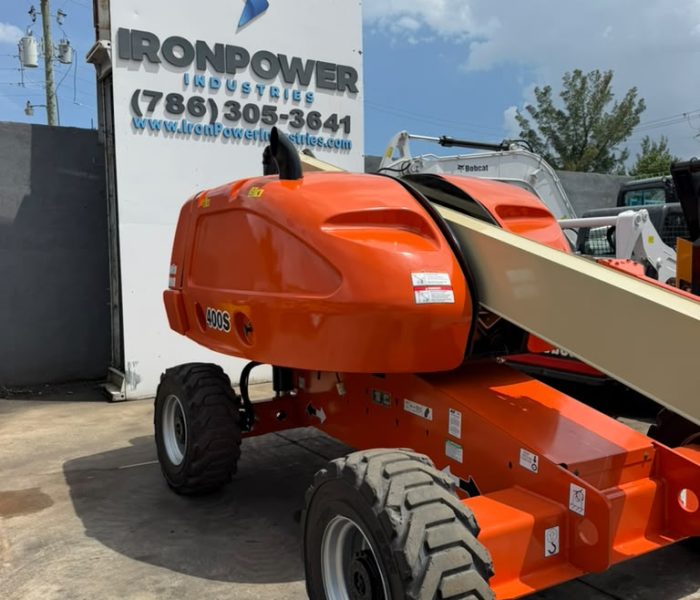

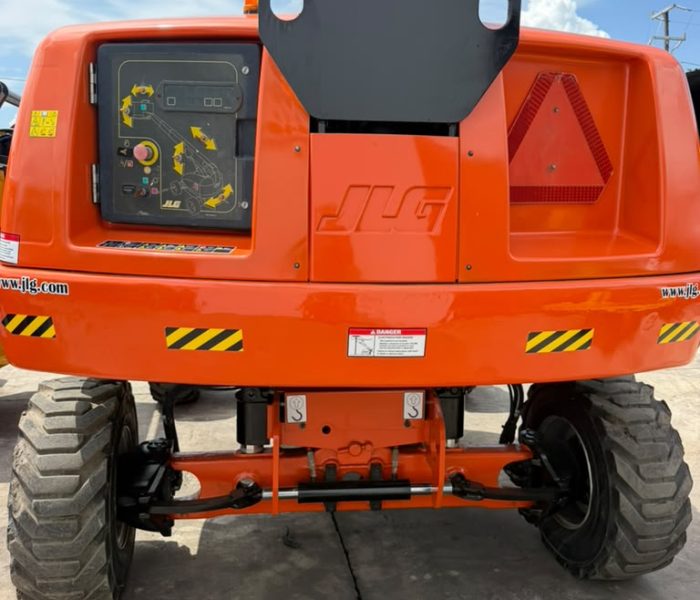

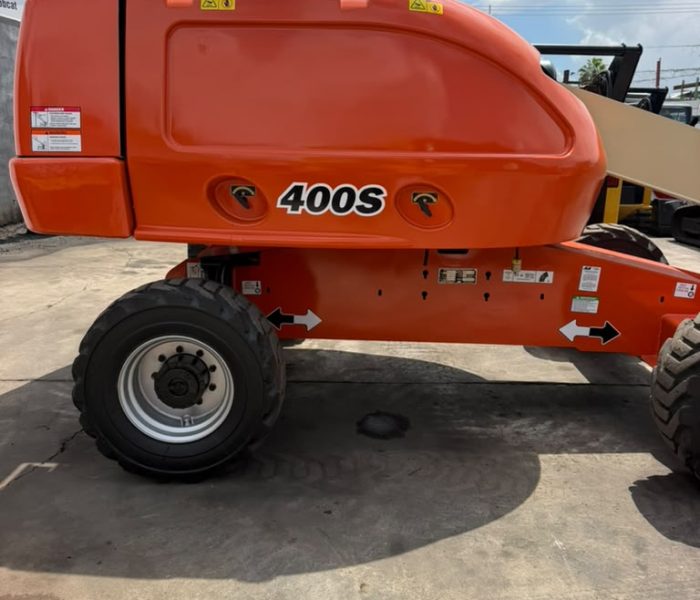

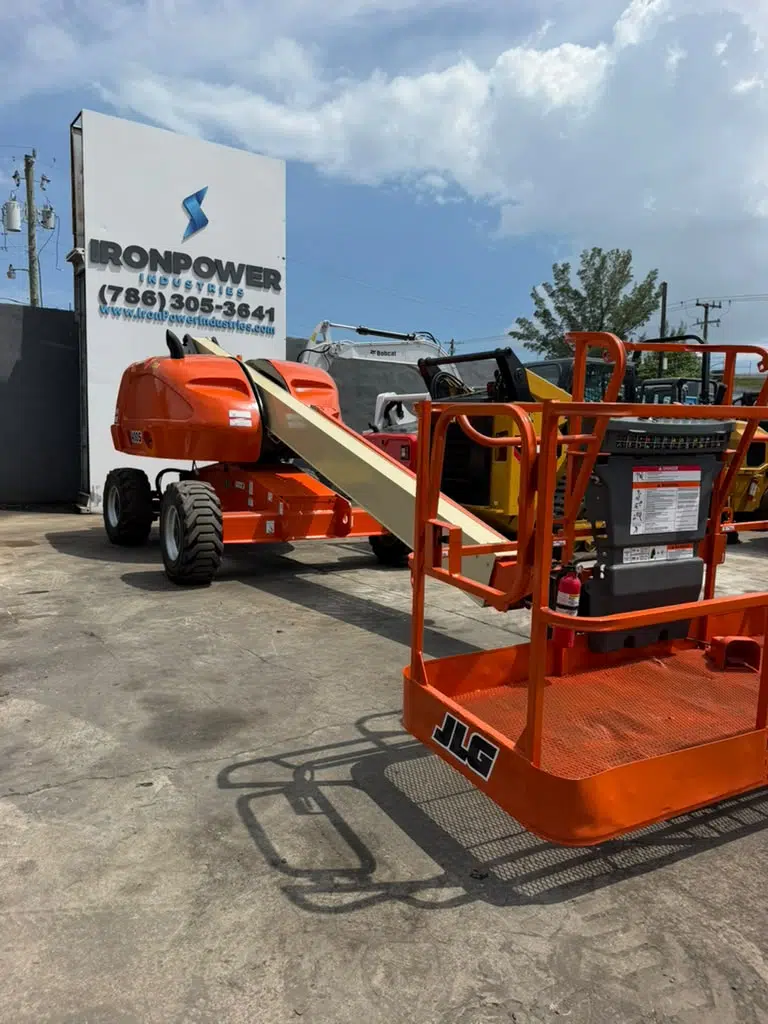

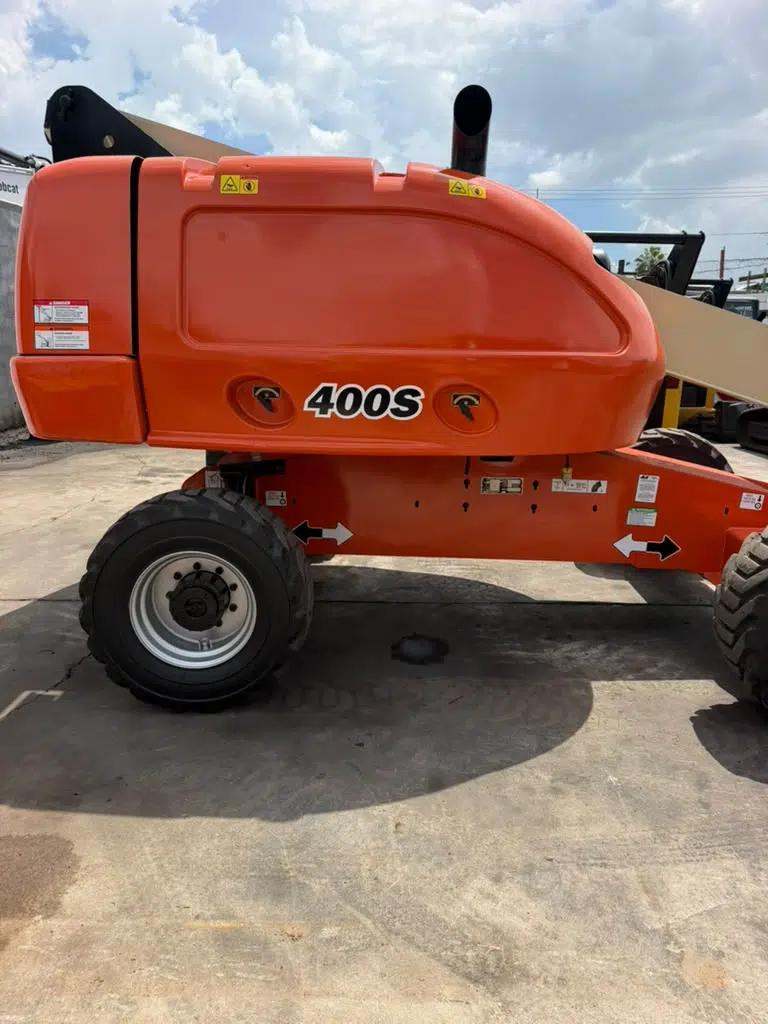

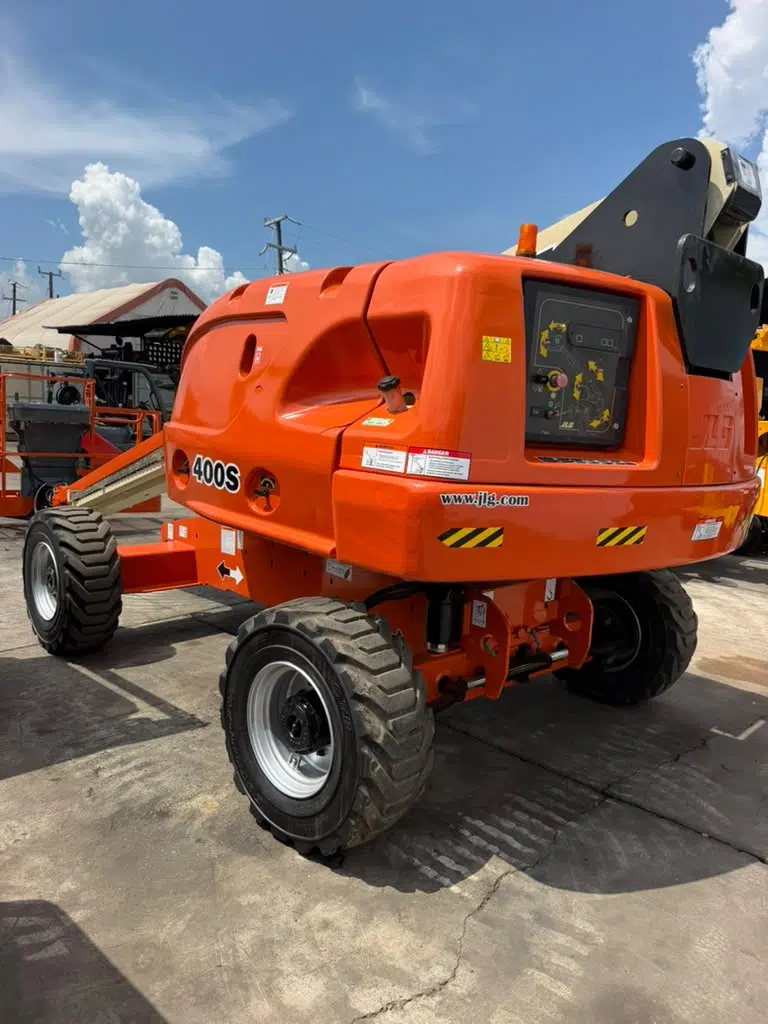

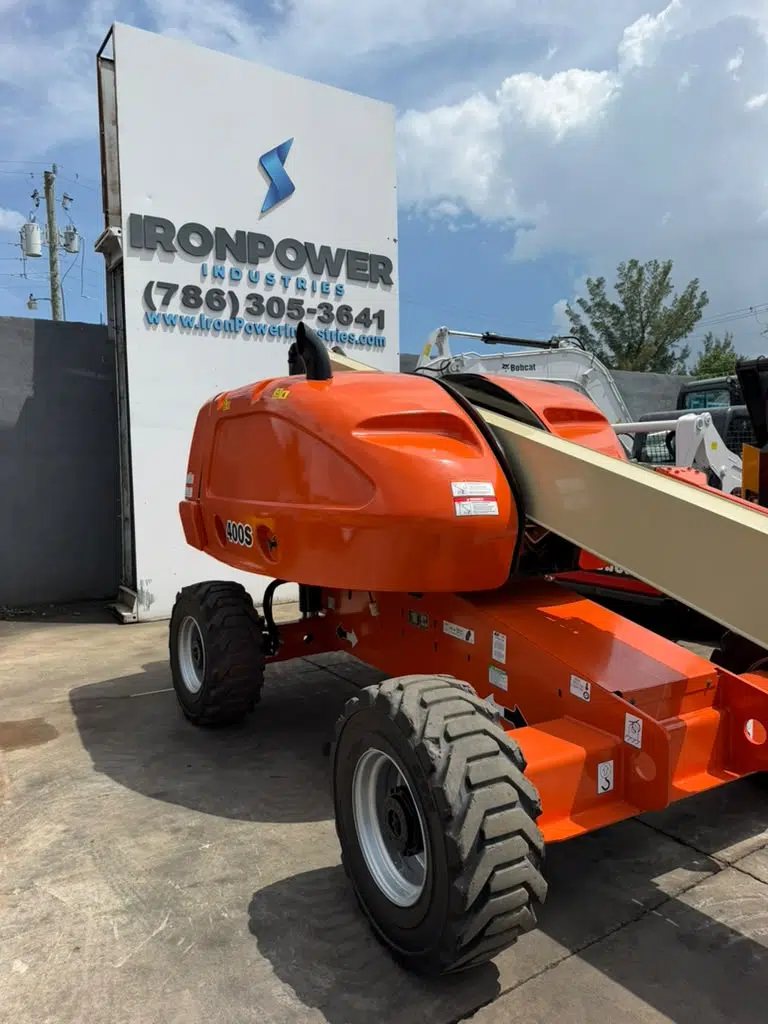

2015 JLG 400S 40FT Telescopic Boom Lift – 4WD Diesel, 1,000 LB Capacity
This 2015 JLG 400S 4WD Telescopic Boom Lift is a heavy-duty aerial work platform designed for construction, industrial maintenance, steel erection, facility maintenance, and other applications requiring dependable access at height. With 3,551 operating hours, the 400S provides a 40 ft platform height, 33 ft 3 in horizontal outreach, and 360° continuous rotation for excellent jobsite coverage.
With 4WD, 45% gradeability, and foam-filled tires, this boom lift is designed to handle demanding outdoor terrain while providing the reach and maneuverability required for professional aerial work.
Key Features
- 3,551 Operating Hours
- 40 ft Platform Height
- 33 ft 3 in Horizontal Outreach
- 4-Wheel Drive (4WD)
- 360° Continuous Swing
- Up to 1,000 lb Restricted Platform Capacity
- 600 lb Unrestricted Platform Capacity

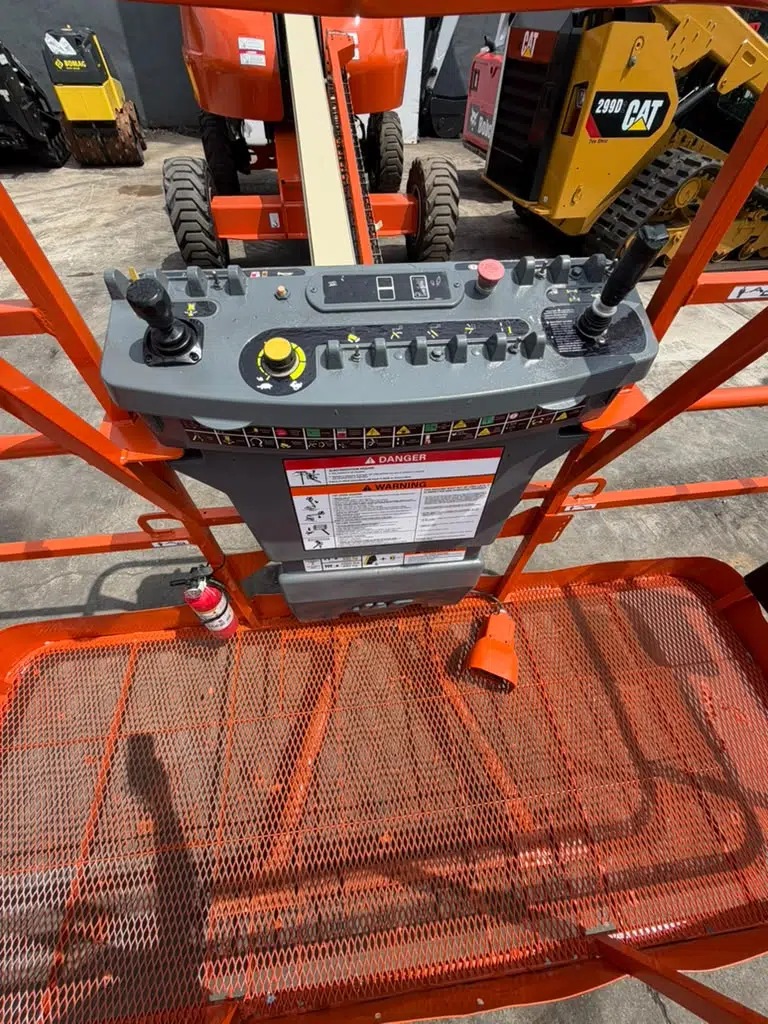

- 180° Hydraulic Platform Rotation
- 45% Gradeability
- Foam-filled tires
- 12V DC auxiliary power
- Telescopic straight-boom design
Performance & Capacity
- Platform Height: 40 ft (12.19 m)
- Horizontal Outreach: 33 ft 3 in (10 m)
- Restricted Platform Capacity: 1,000 lb (454 kg)
- Unrestricted Platform Capacity: 600 lb (272 kg)
- Swing: 360° Continuous
- Platform Rotator: 180° Hydraulic
- Drive Speed: 4.25 mph (6.8 km/h)
- Gradeability: 45%
- Tilt Cut-Out: 5°
- Maximum Ground Bearing Pressure: 58 psi
- Inside Turning Radius: 6 ft 5 in (2.0 m)
- Outside Turning Radius: 15 ft 8 in (4.8 m)

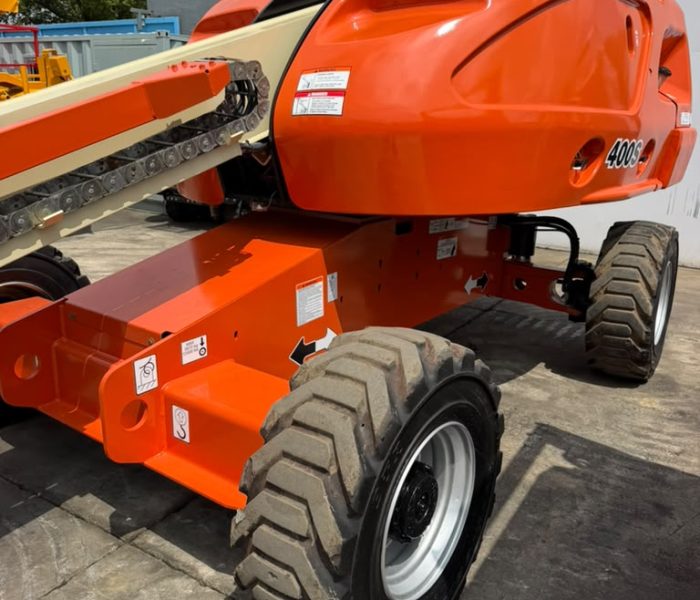

Tires & Drive
- Drive: 4WD
- Tires: 12 × 16.5
- Tire Type: Foam Filled

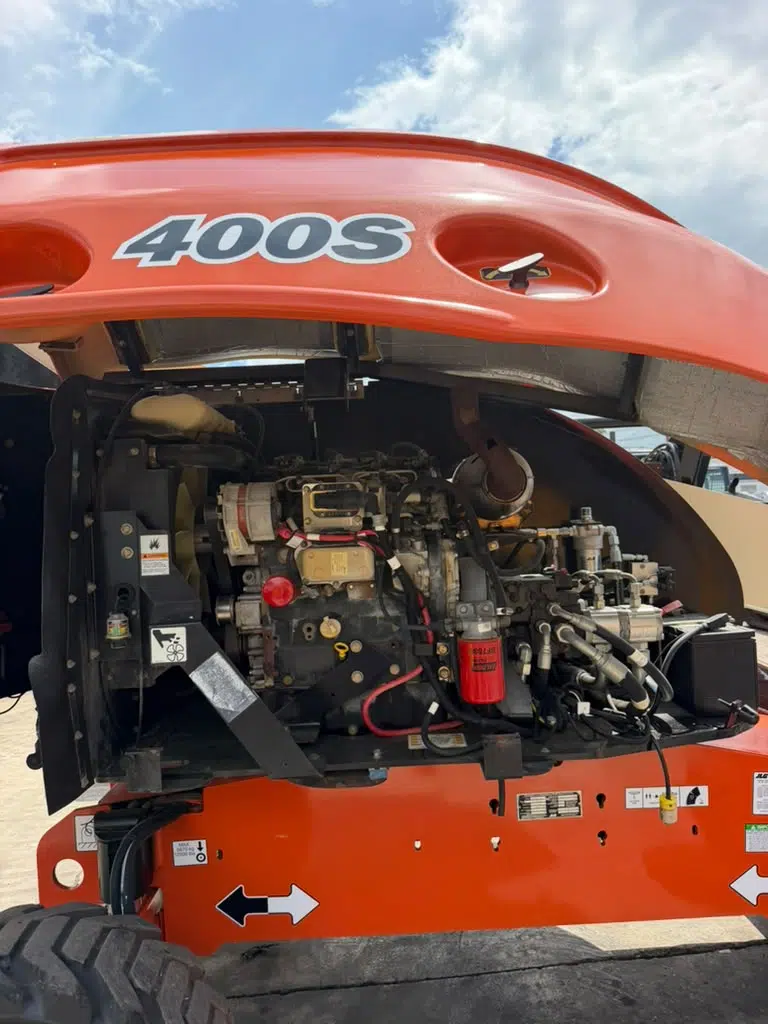

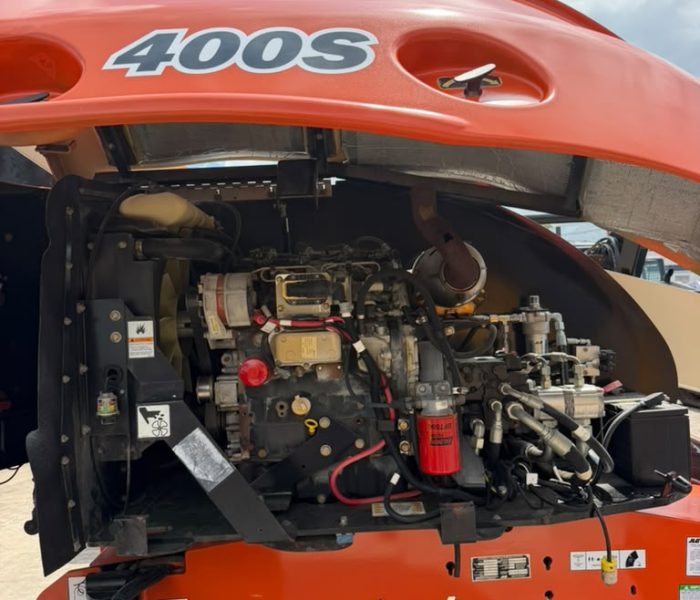

Engine
The JLG 400S was available with different engine configurations. The exact engine installed on this machine should be confirmed from the engine identification tag.
Diesel Option – Deutz D2.9L4
- 49 HP (36.4 kW)
- Tier 4 Final
- Diesel
Dual-Fuel Option – Kubota WG2503
- 61 HP (45.5 kW)
- Fuel Tank Capacity: 22 gal (83.3 L)

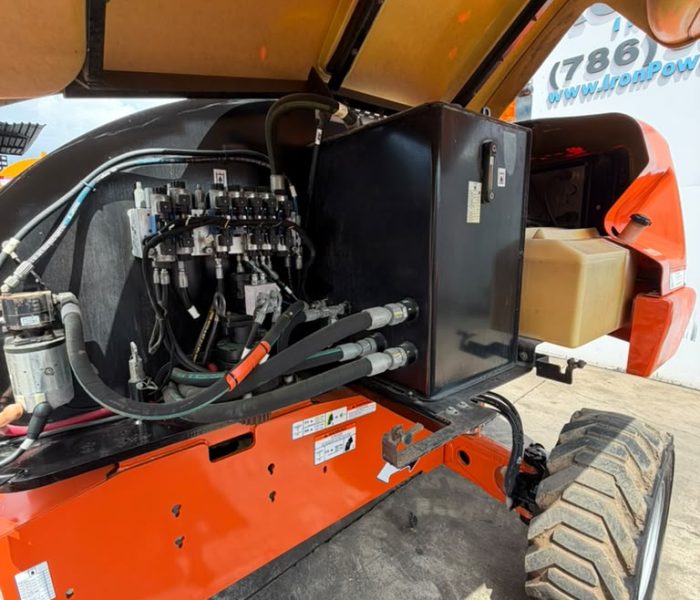

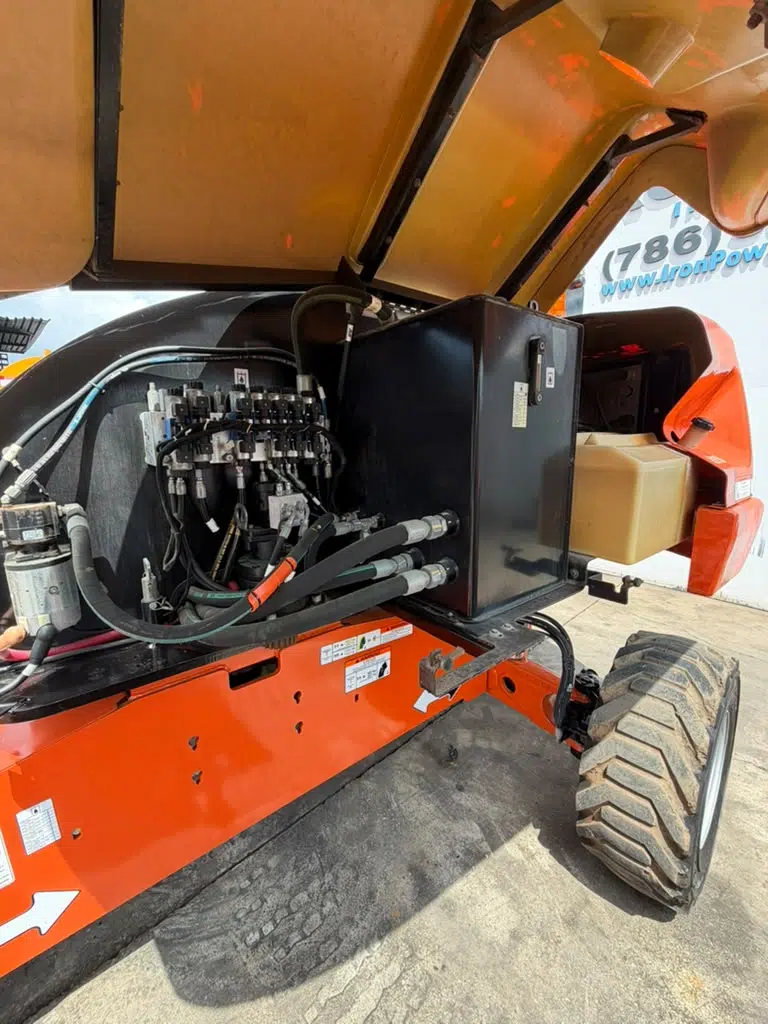

Hydraulic System
- Hydraulic Reservoir: 36 gal (136.27 L)
- Auxiliary Power: 12V DC
Dimensions & Weight
- Platform Width: 36 in (0.91 m)
- Machine Width: 7 ft 6.8 in (2.31 m)
- Machine Height: 8 ft 1.4 in (2.47 m)
- Machine Length: 24 ft 10.1 in (7.57 m)
- Wheelbase: 7 ft 9.5 in (2.37 m)
- Tailswing: 2 ft 10 in (86 cm)
- Operating Weight: 13,640 lb
Ideal Applications
- Commercial construction
- Steel erection
- Building maintenance
- Industrial facilities
- Roofing and exterior work
- Electrical and mechanical installation
- Sign installation
- Warehouses and distribution facilities
- Rental fleet operations
The JLG 400S combines a 40 ft platform height, 33 ft 3 in horizontal outreach, 4WD capability, 360° continuous rotation, and up to 1,000 lb restricted platform capacity, making it a versatile telescopic boom lift for demanding construction and industrial applications.
Contact us today for pricing, financing, nationwide shipping, or additional information on this JLG 400S and our complete inventory of boom lifts, scissor lifts, telehandlers, forklifts, and heavy equipment.
