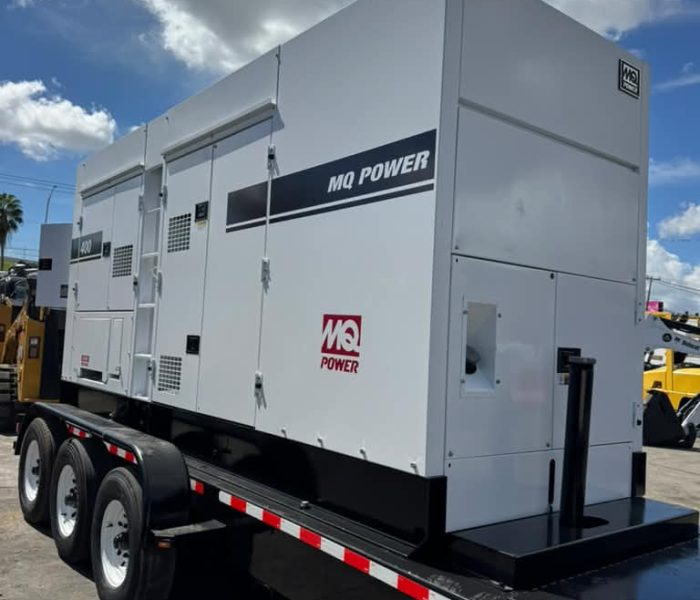

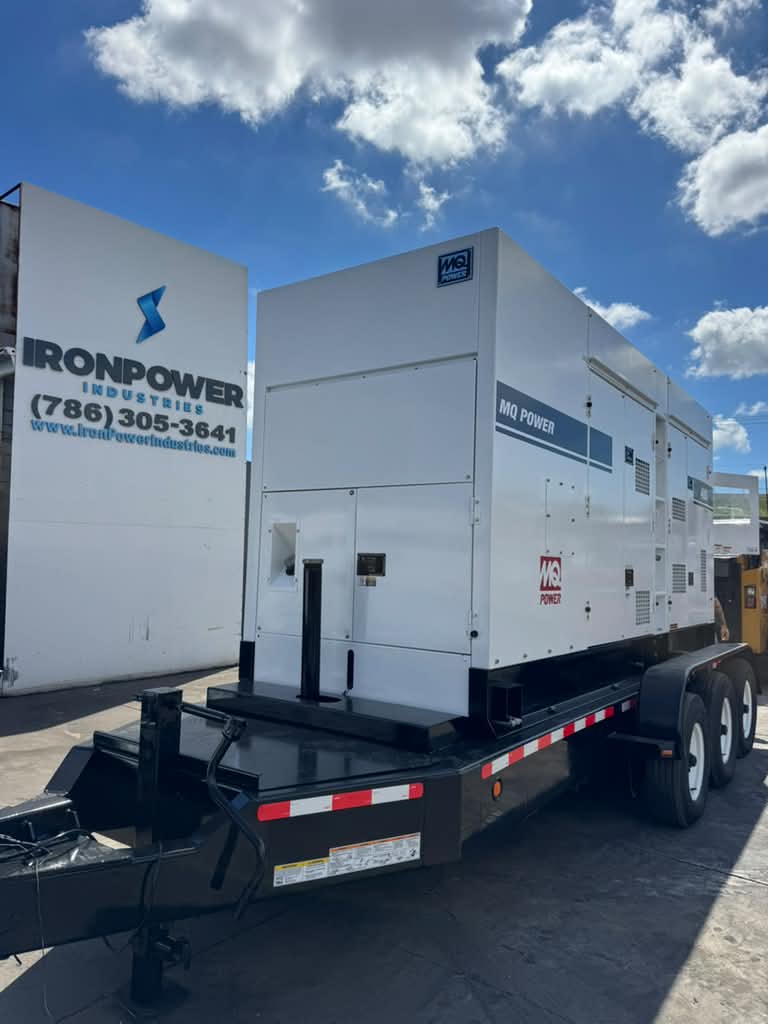

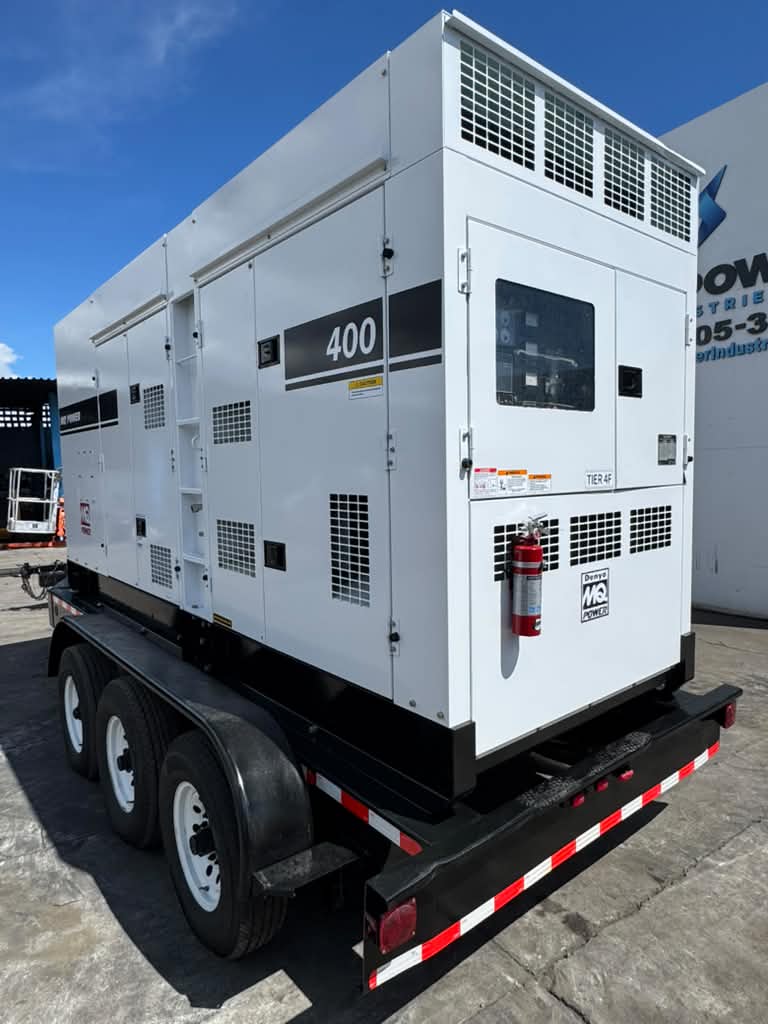

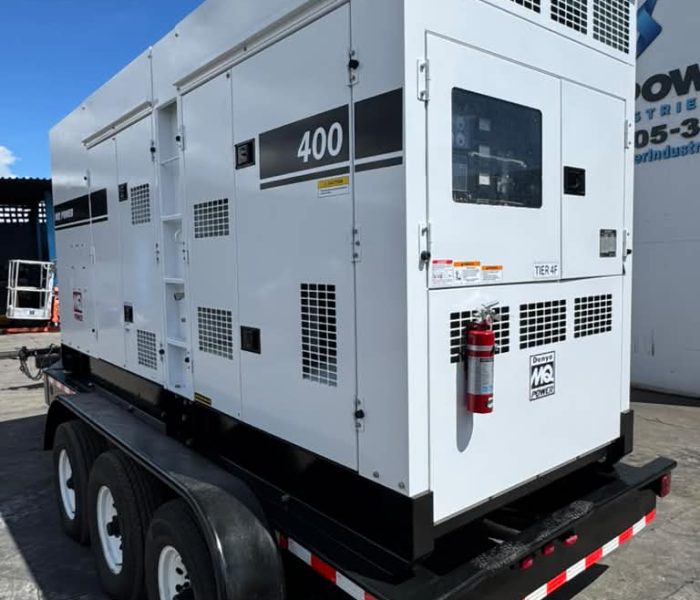

2016 Multiquip WhisperWatt DCA-400SSI4F 400 kVA Diesel Generator – Trailer Mounted

2016 Multiquip WhisperWatt DCA-400SSI4F 400 kVA Diesel Generator – Trailer Mounted

This 2016 Multiquip WhisperWatt DCA-400SSI4F 400 kVA Diesel Generator is a heavy-duty industrial power solution designed for large construction projects, commercial facilities, emergency backup, industrial operations, utilities, and demanding temporary power applications.

Powered by an Isuzu BQ-6WG1X Tier 4 Final diesel engine, this generator delivers 320 kW (400 kVA) of prime power and 336 kW (420 kVA) of standby power. Its reconnectable three-phase and adjustable single-phase voltage configurations provide the flexibility needed for a wide variety of commercial and industrial power requirements.

Key Features

• 4,917 Operating Hours
• 400 kVA / 320 kW Prime Power
• 420 kVA / 336 kW Standby Power
• Isuzu BQ-6WG1X Diesel Engine
• Tier 4 Final
• Turbocharged & charge-air cooled
• Brushless excitation with AVR
• Reconnectable three-phase voltage
• Adjustable single-phase voltage
• 1,800 RPM
• 60 Hz
• 69 dB(A) at full load from 23 ft

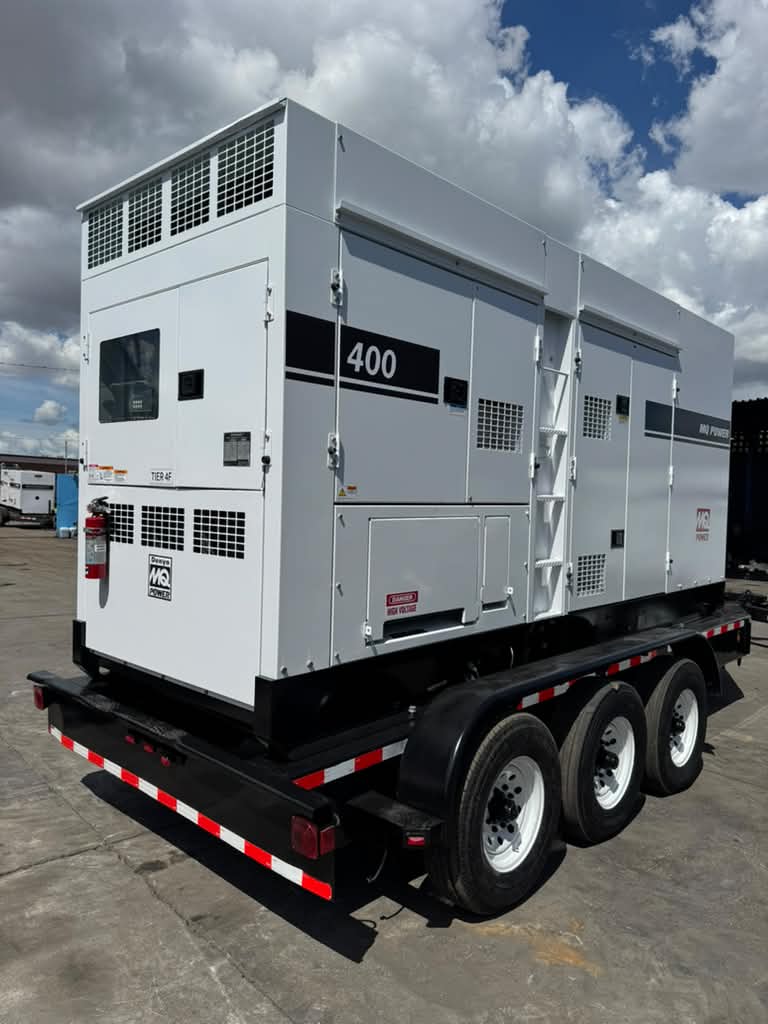

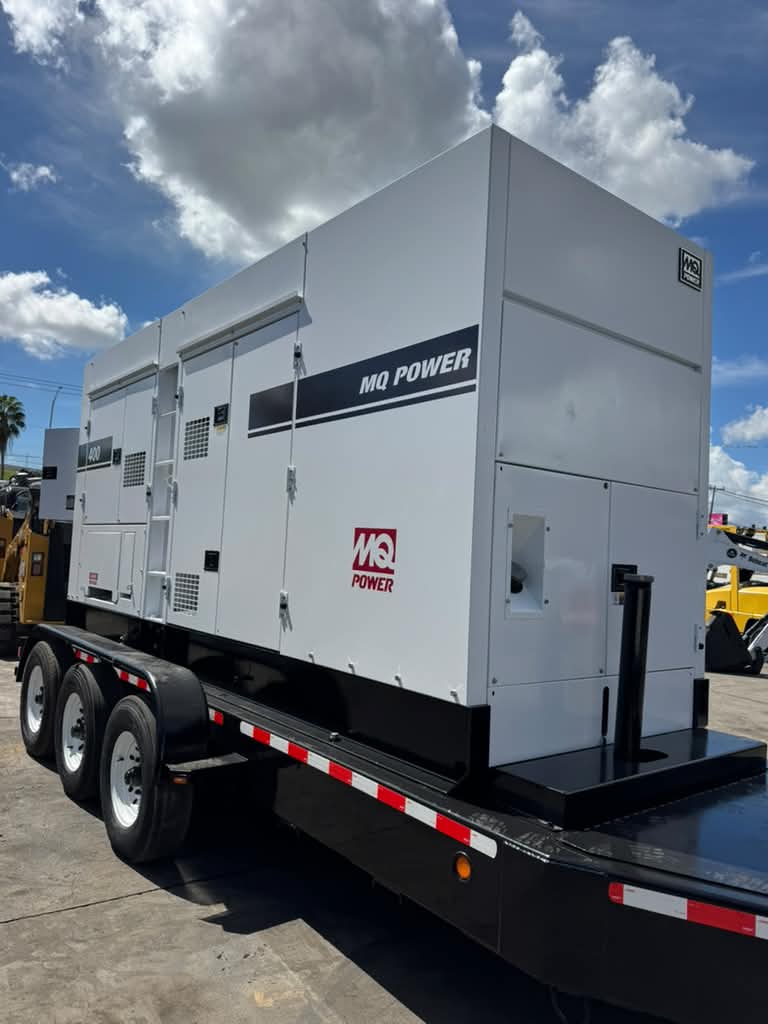

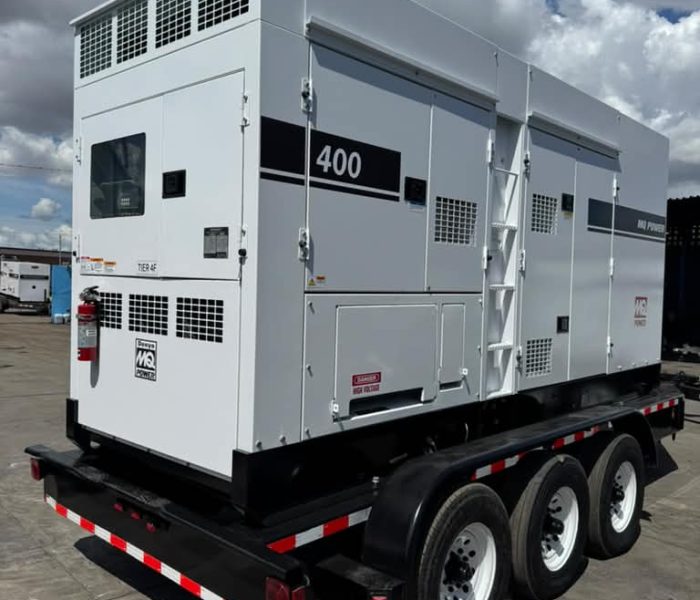

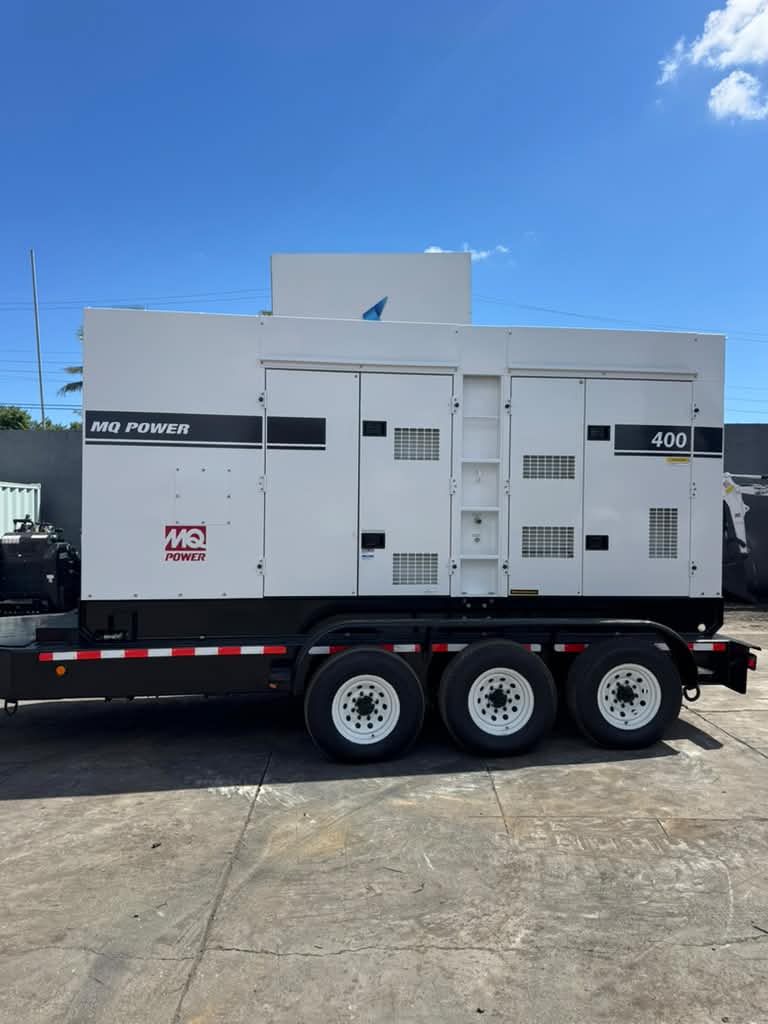

• Trailer-mounted configuration
• Heavy-duty industrial power system

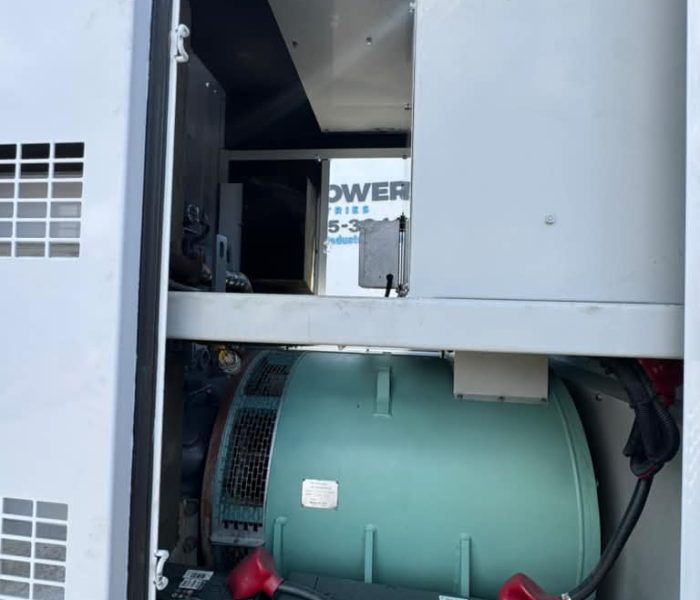

Generator Specifications

• Prime Rating: 320 kW / 400 kVA
• Standby Rating: 336 kW / 420 kVA
• Generator Speed: 1,800 RPM
• Frequency: 60 Hz
• Power Factor: 0.8
• Number of Poles: 4
• Armature Connection: Star with Neutral
• Excitation: Brushless with AVR

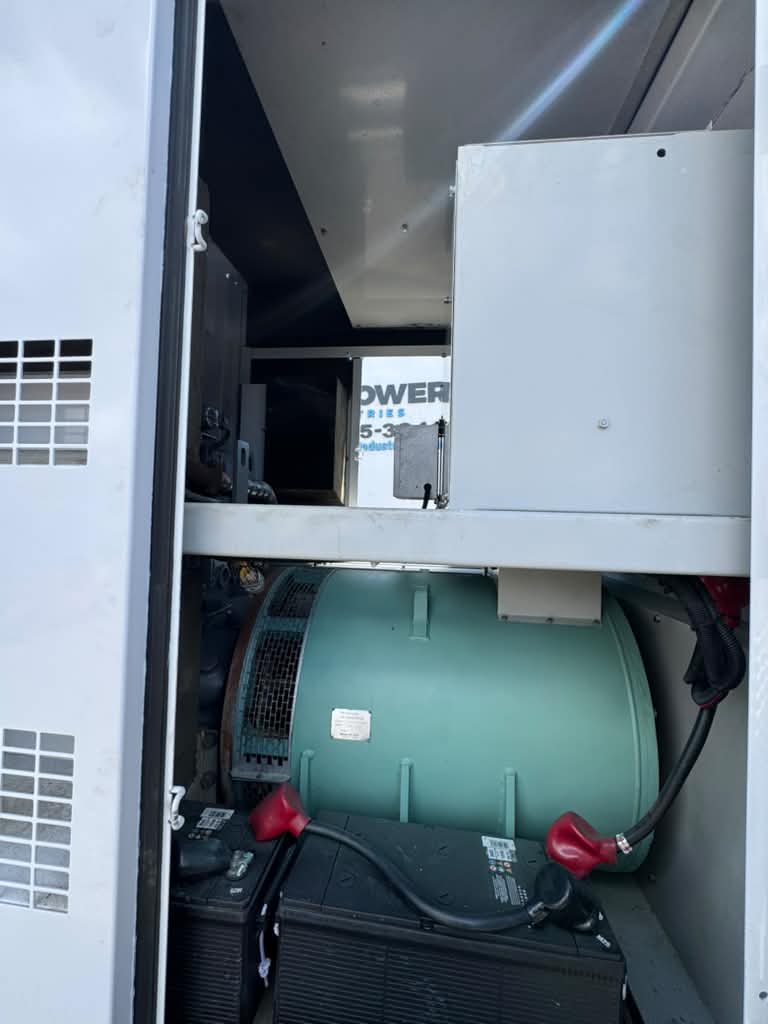

• Generator Design: Revolving Field, Self-Ventilated, Drip-Proof, Single Bearing
• Voltage Regulation – No Load to Full Load: ±0.5%
• Frequency Regulation – Steady-State Load: ±0.25%
• Sound Level at Full Load: 69 dB(A) @ 23 ft

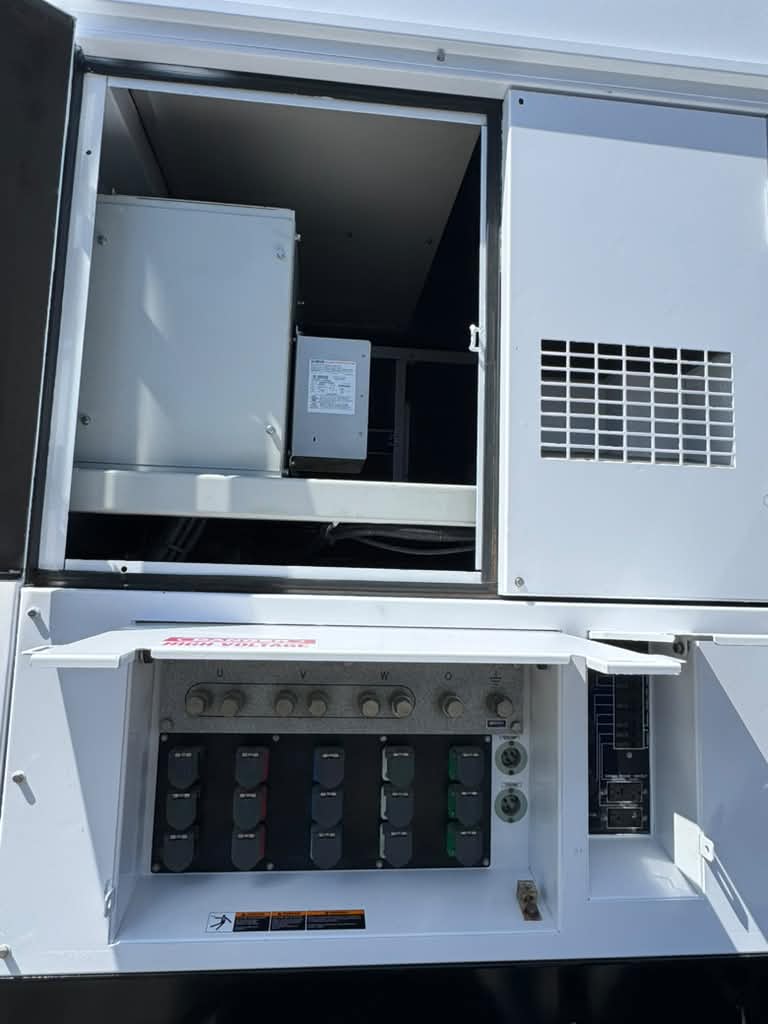

Voltage Output

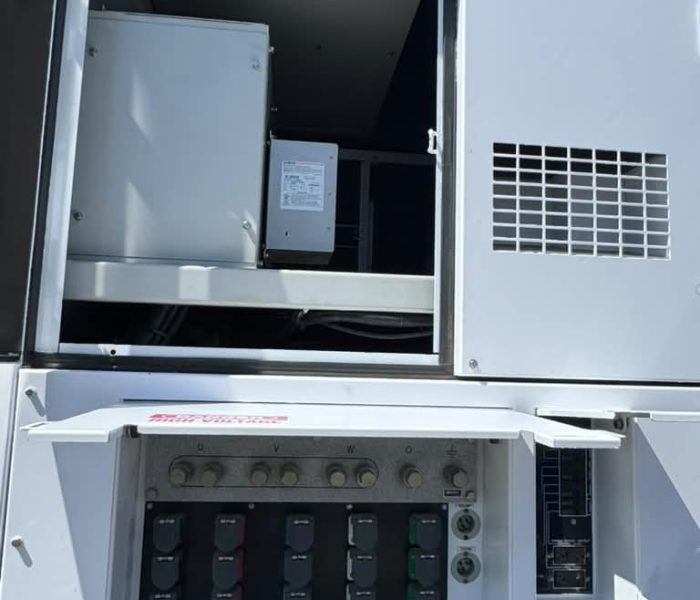

Three-Phase – Reconnectable

• 208V
• 220V
• 240V
• 416V
• 440V
• 480V

Single-Phase – Adjustable

• 120V
• 127V
• 139V
• 240V
• 254V
• 277V

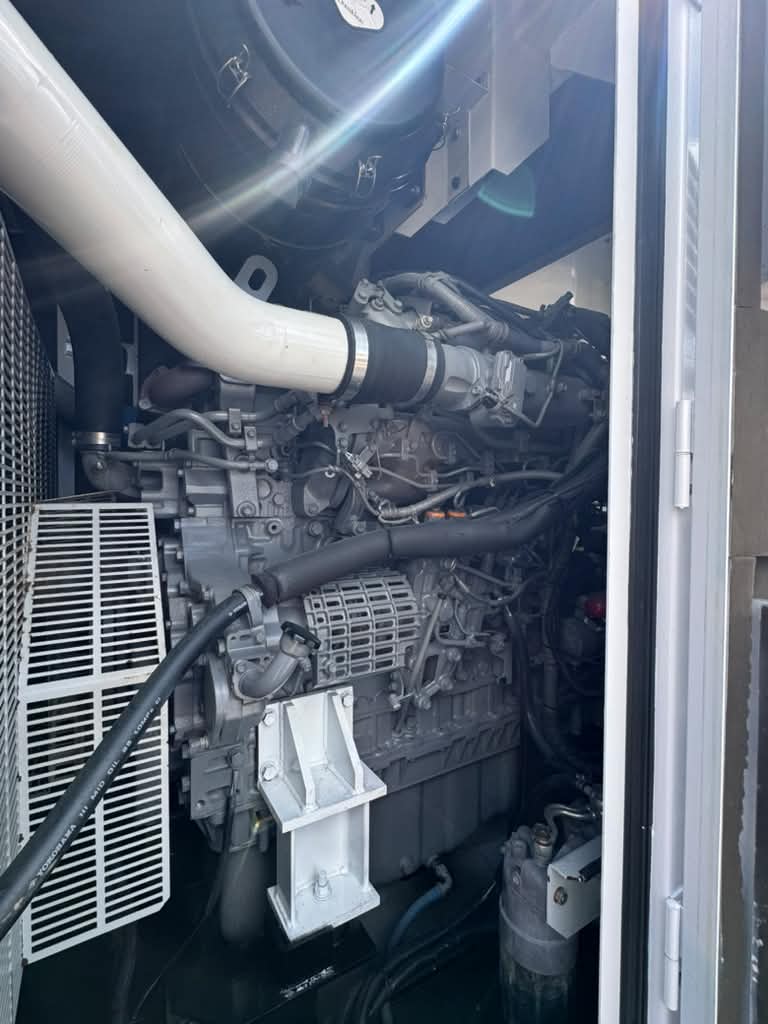

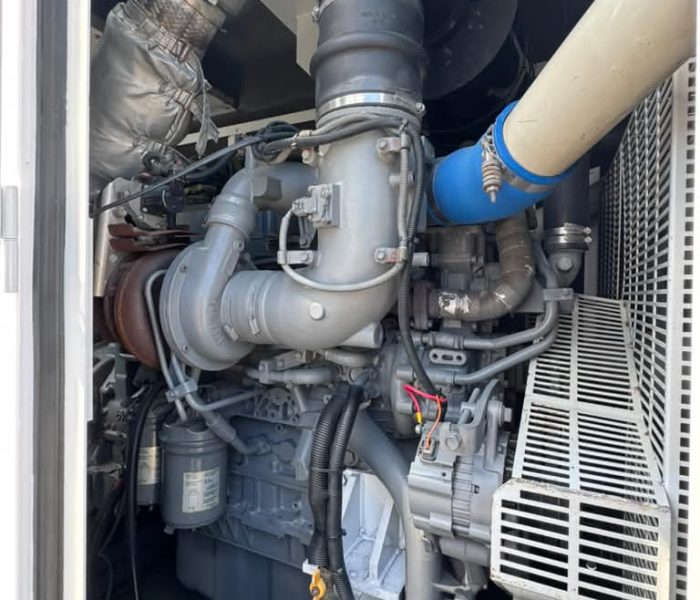

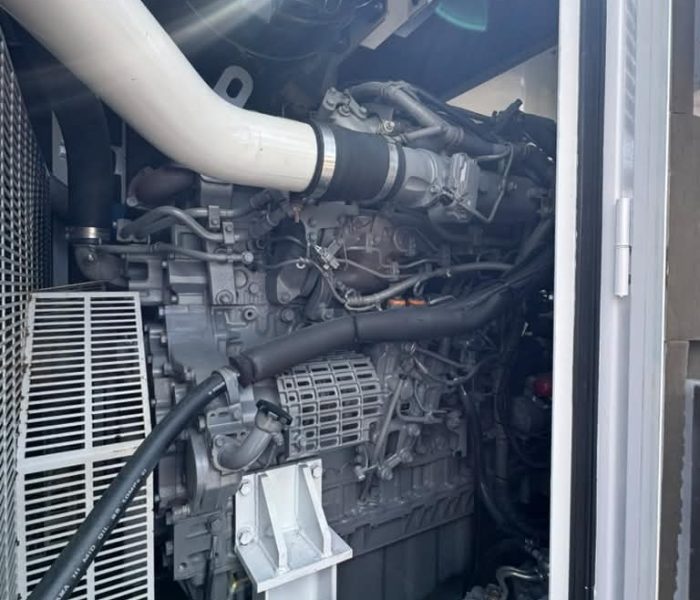

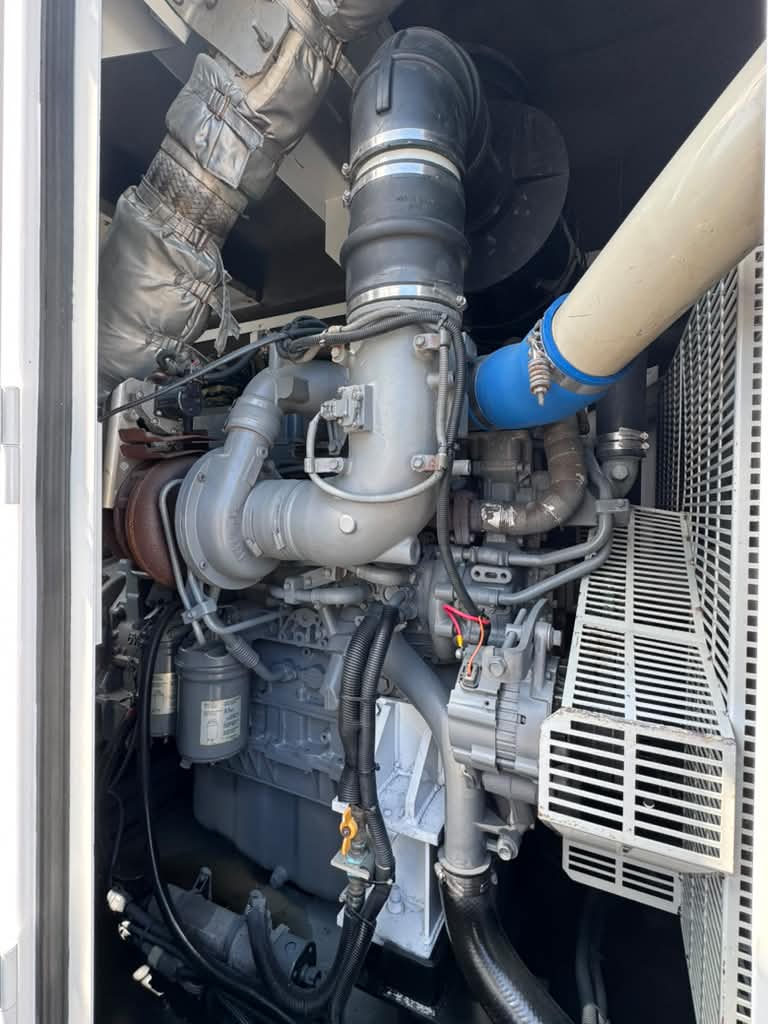

Engine

• Make/Model: Isuzu BQ-6WG1X
• Fuel Type: Diesel
• Emissions: EPA Tier 4 Final
• Starting System: Electric
• Design: 4-Cycle
• Water cooled
• Direct injection
• Turbocharged
• Charge-air cooled
• EGR
• DOC
• SCR

Fuel Consumption

• Full Load: 22.5 GPH (85.1 LPH)
• 75% Load: 17.3 GPH (65.5 LPH)
• 50% Load: 12.2 GPH (46.0 LPH)
• 25% Load: 7.7 GPH (29.0 LPH)

Fluid Capacities

• Fuel Tank Capacity: 55.5 gal
• DEF Tank Capacity: 14.8 gal
• Coolant Capacity: 19.4 gal
• Engine Oil Capacity: 15 gal

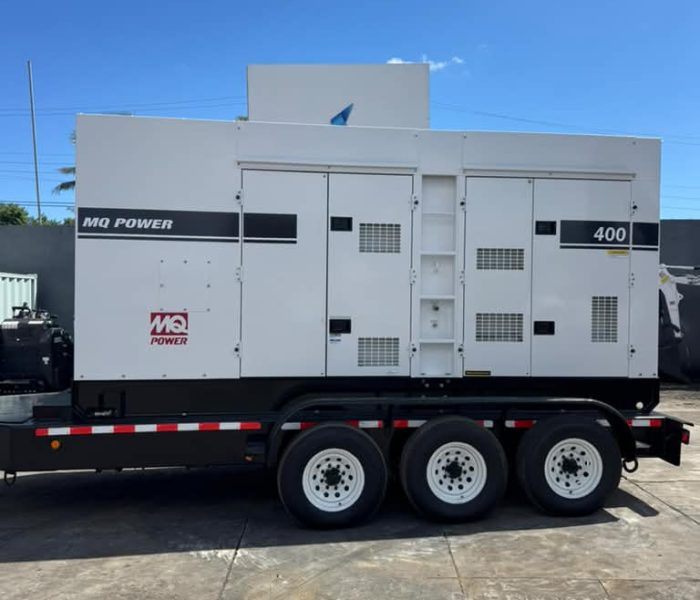

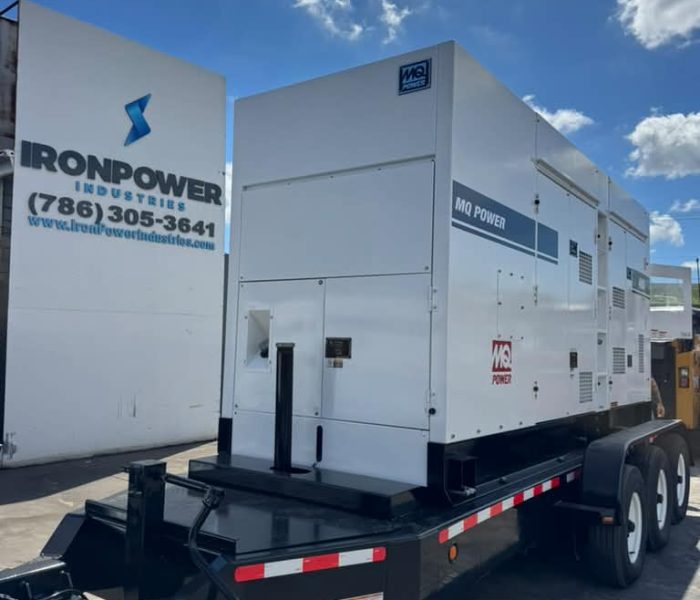

Overall Dimensions – Generator with Trailer

• Overall Length: 22 ft (264 in)
• Overall Width: 7 ft 10 in (94 in)
• Overall Height: 10 ft 2 in (122 in)
• Approximate Loaded Weight: 17,200 lb

Ideal Applications

• Large construction projects
• Commercial and industrial facilities
• Emergency backup power
• Manufacturing facilities
• Utility operations
• Data and communications facilities
• Large temporary power installations
• Municipal projects
• Rental fleet operations
• Disaster and emergency response

The Multiquip DCA-400SSI4F provides 400 kVA of prime power, dependable Isuzu diesel performance, flexible multi-voltage output, and a heavy-duty trailer-mounted configuration. Its combination of substantial power output and commercial-grade construction makes it a strong solution for demanding industrial and temporary power applications.

Contact us today for pricing, financing, nationwide shipping, or additional information on this Multiquip 400 kVA generator and our complete inventory of generators, air compressors, and heavy equipment.
