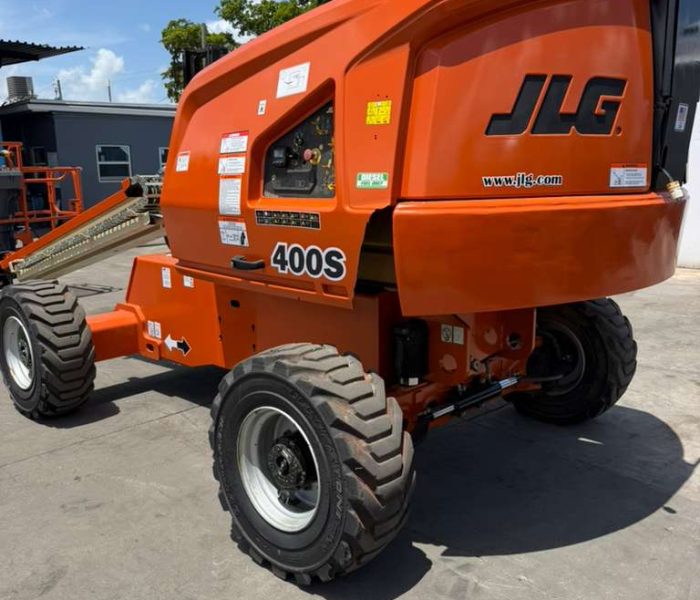

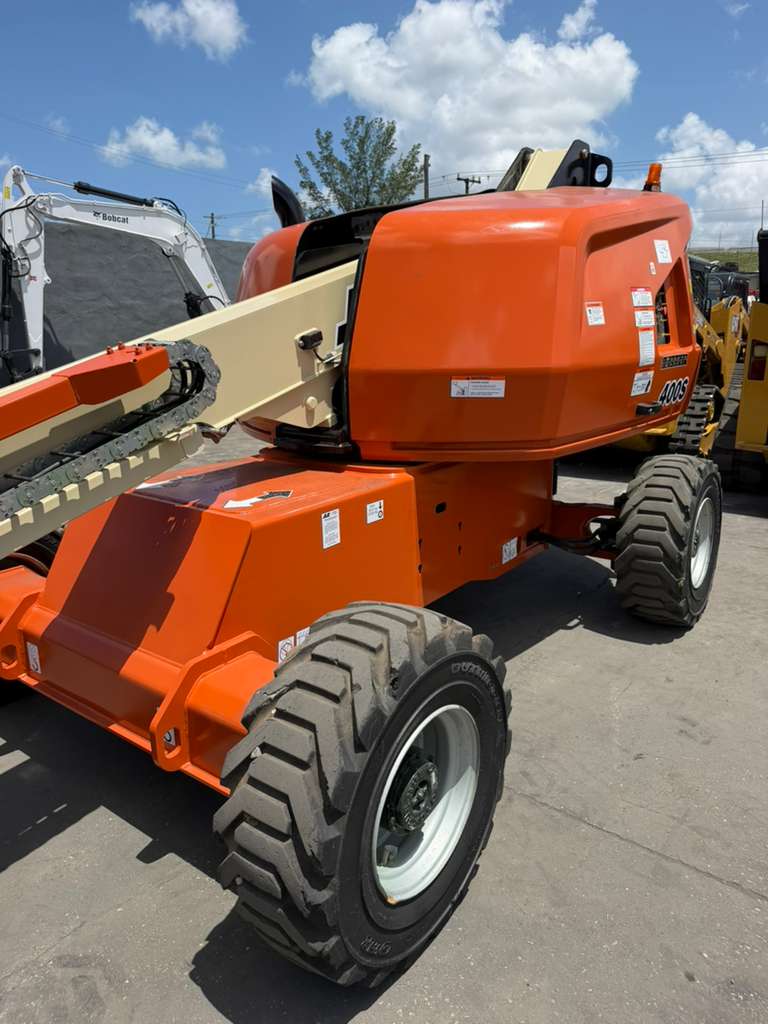

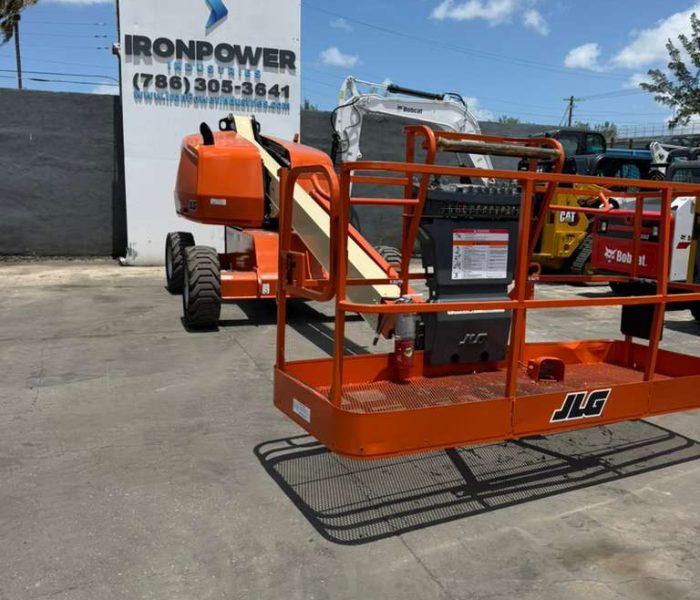

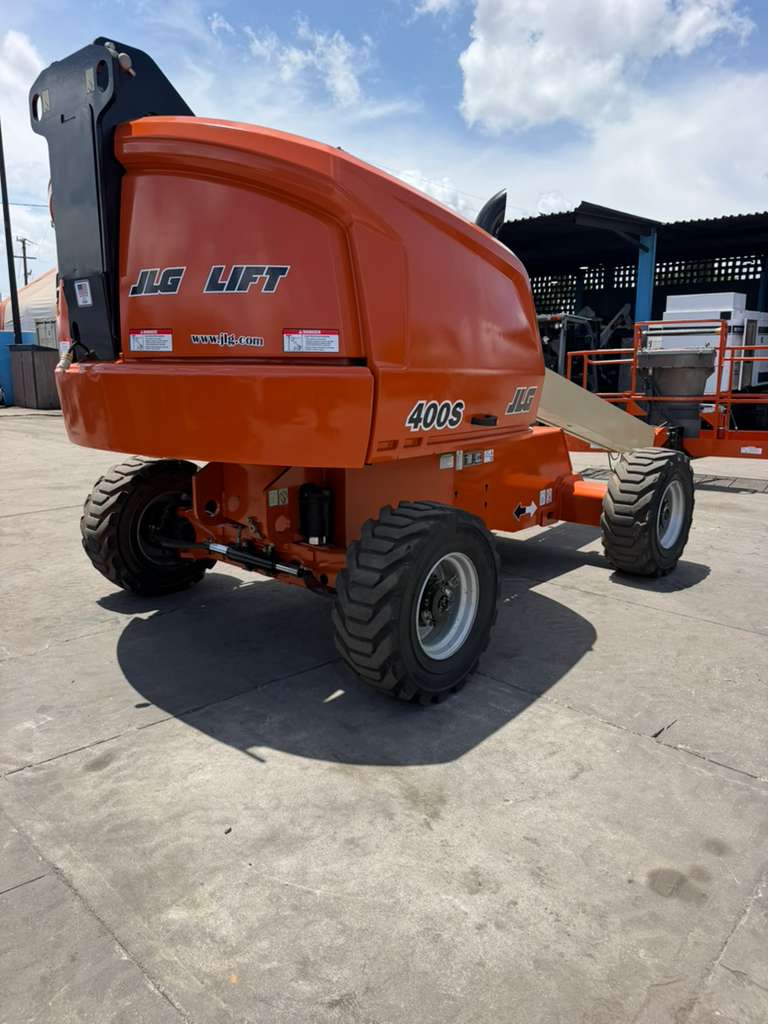

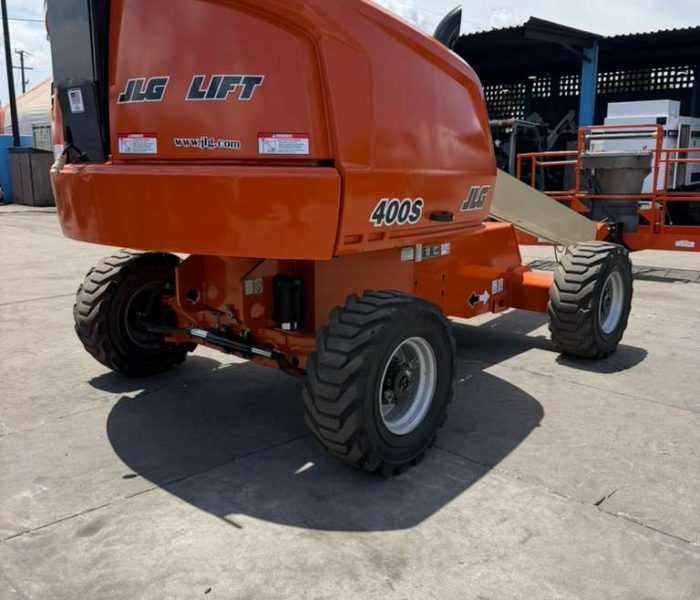

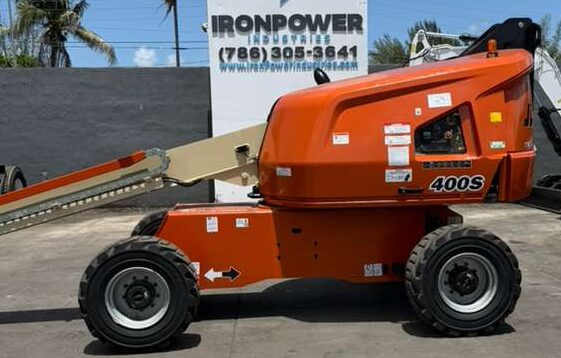

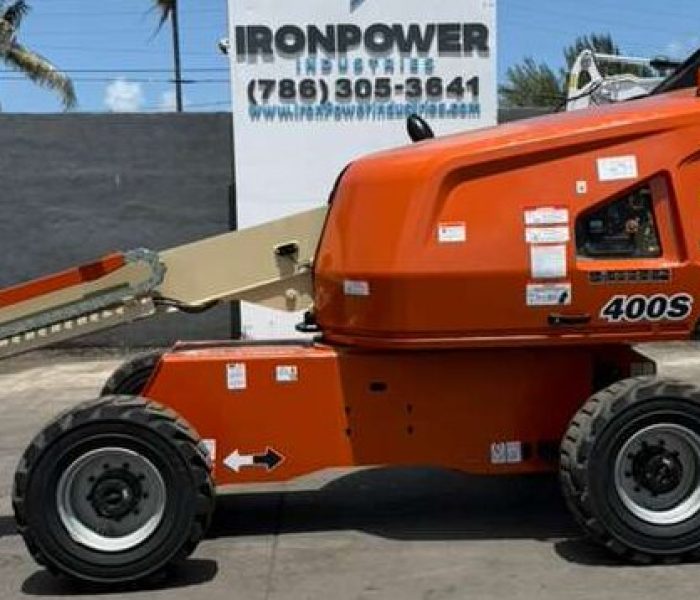

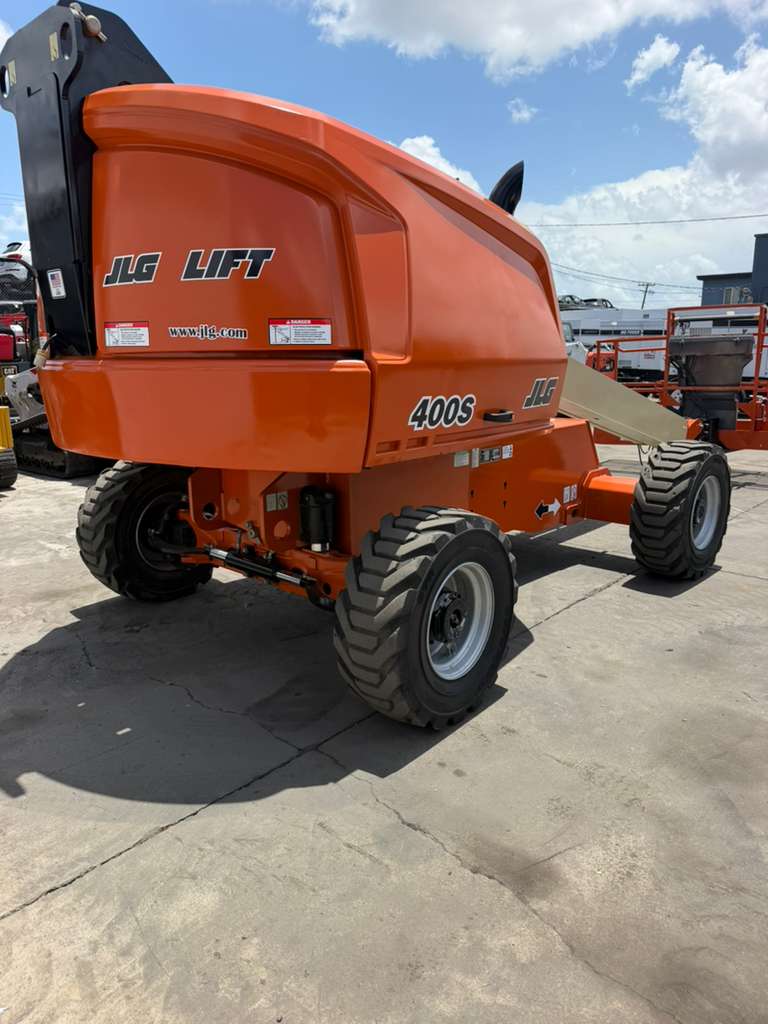

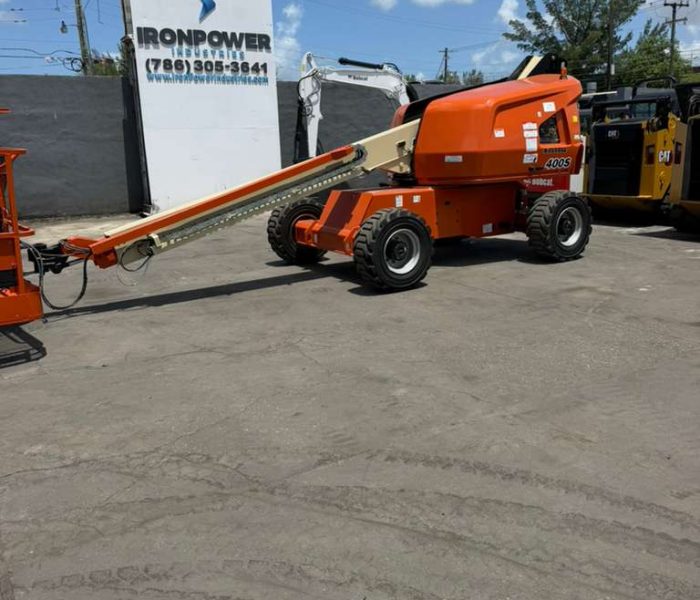

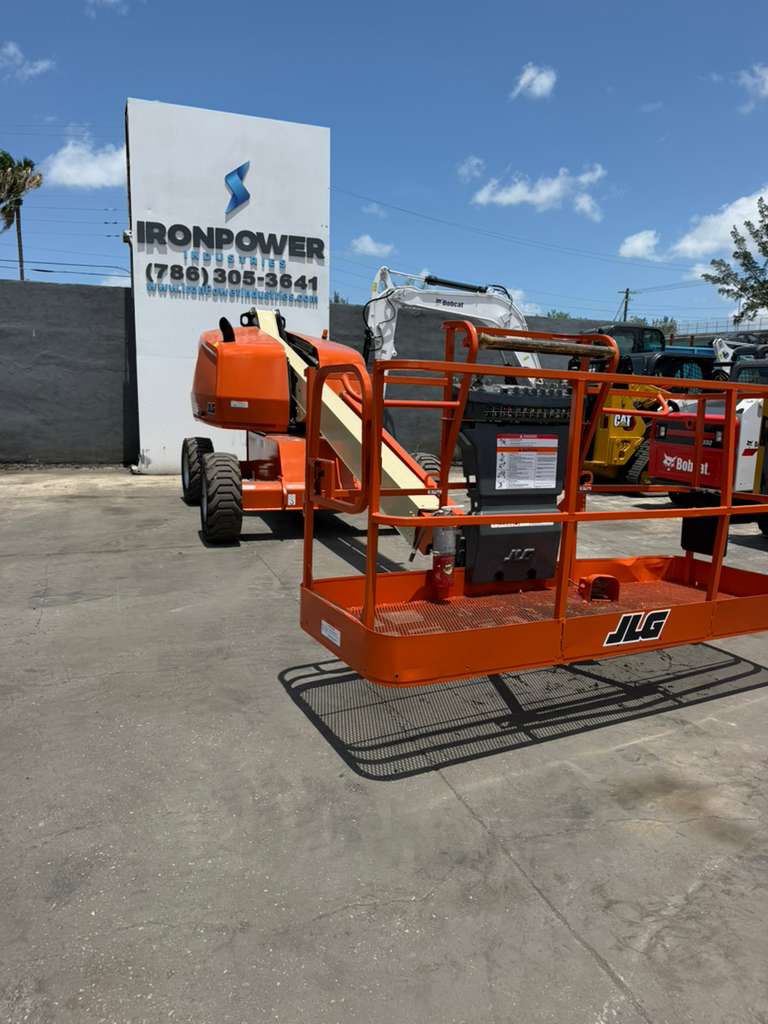

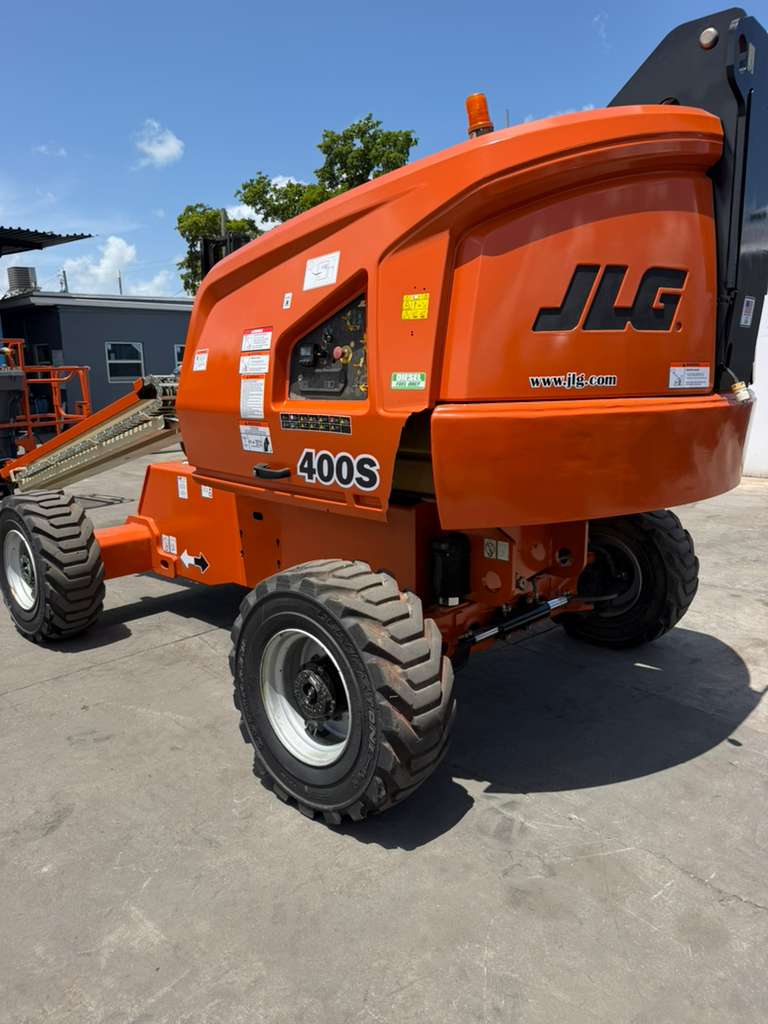

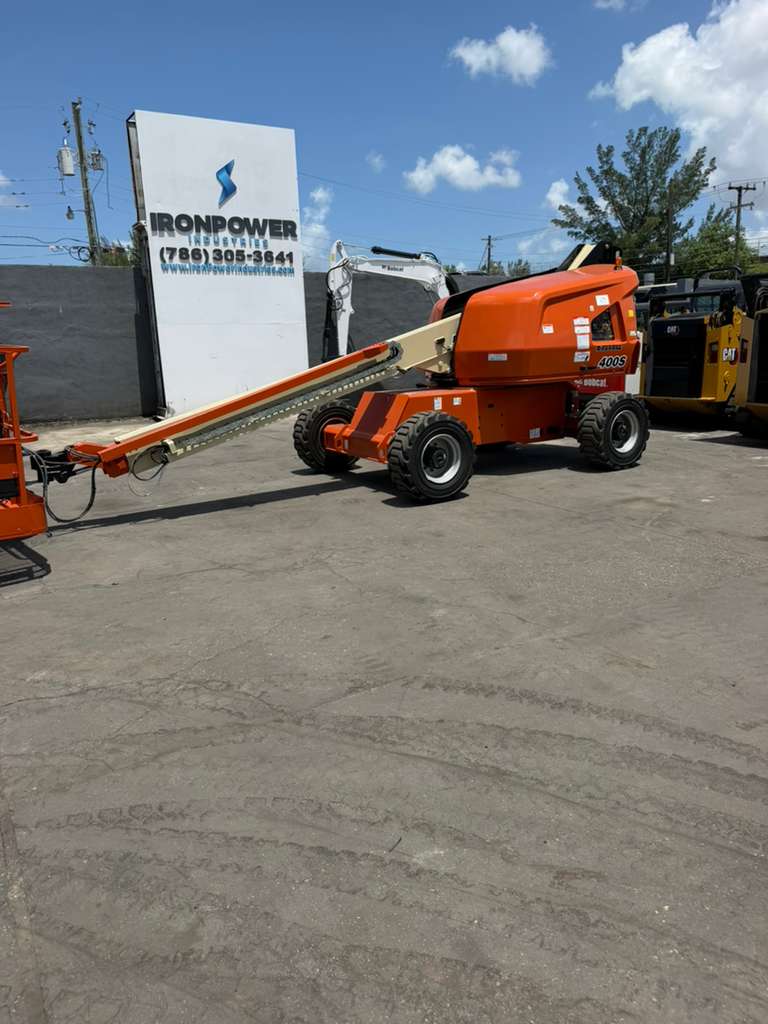

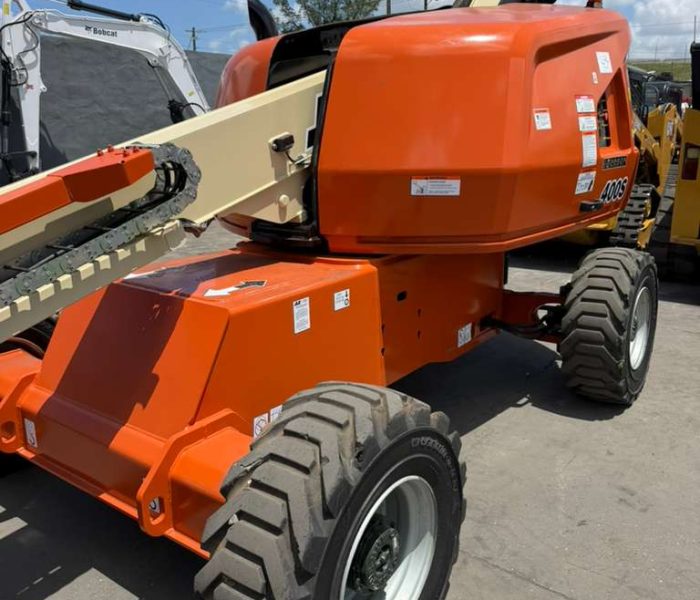

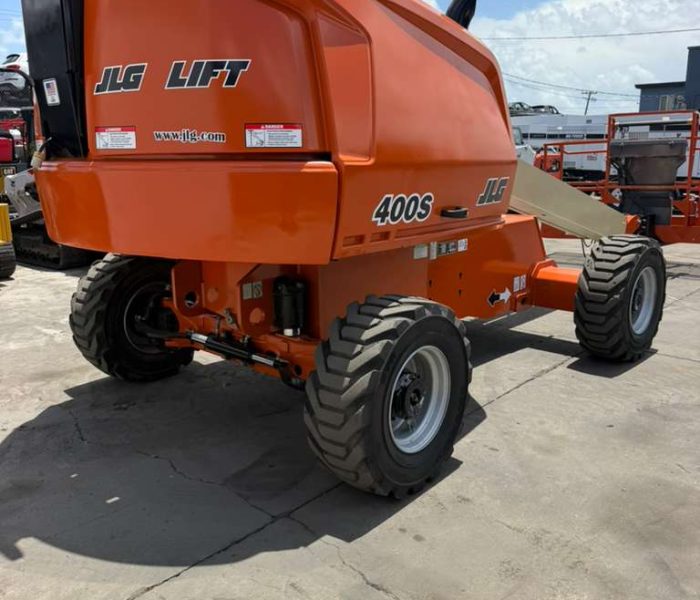

2017 JLG 400S Telescopic Boom Lift – 40 ft Platform Height, 4WD, Diesel Fuel

This 2017 JLG 400S telescopic boom lift with 3,457 hours is a dependable, high-performance aerial work platform built for construction, industrial maintenance, steel erection, facility management, and commercial jobsite applications. Featuring a 40-foot platform height, 33-foot 3-inch horizontal outreach, and 360° continuous rotation, this boom lift provides outstanding reach and productivity for elevated work.

Designed for demanding jobsites, the JLG 400S combines exceptional maneuverability, rugged construction, and excellent lifting capacity, making it ideal for both indoor and outdoor applications. Explore our complete inventory of telescopic boom lifts to find the perfect addition to your lifting equipment operations.

Equipment Overview

Why This Boom Lift Stands Out

• 40 ft Platform Height & 33 ft Outreach: Provides maximum vertical and horizontal reach for difficult-to-access work areas.
• 360° Continuous Swing: Allows operators to position the platform quickly without needing to reposition the entire machine base.
• Hydraulic 180° Platform Rotator: Delivers precise positioning for workers and materials.
• 4WD with 45% Gradeability: Superior traction and power to navigate rough, uneven, and unpaved terrain with ease.
• High Platform Capacity: Offers an unrestricted 600 lb capacity and a restricted 1,000 lb capacity for heavy-duty tasks.

Performance & Reach Specifications

• Platform Height: 40 ft (12.19 m)
• Horizontal Outreach: 33 ft 3 in (10 m)
• Platform Capacity (Unrestricted): 600 lb
• Platform Capacity (Restricted): 1,000 lb
• Platform Rotator: 180° hydraulic
• Swing: 360° continuous
• Maximum Drive Speed: 4.25 mph
• Gradeability: 45%
• Maximum Ground Bearing Pressure: 58 PSI

Engine Options & Hydraulic System

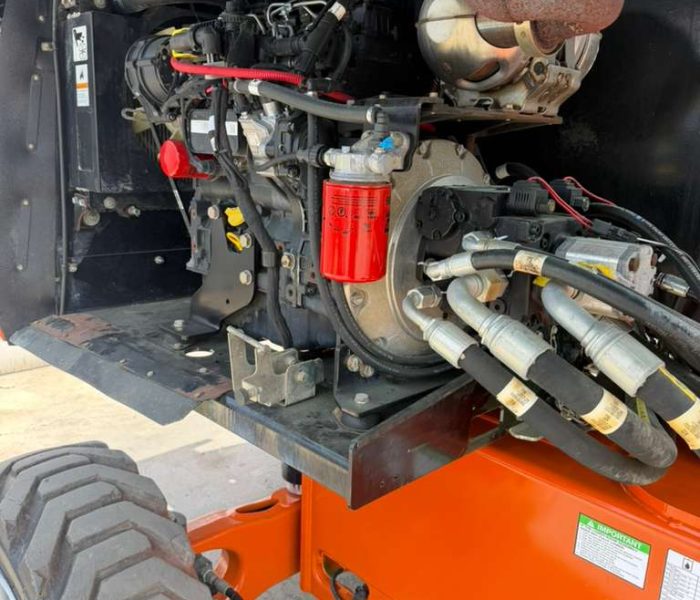

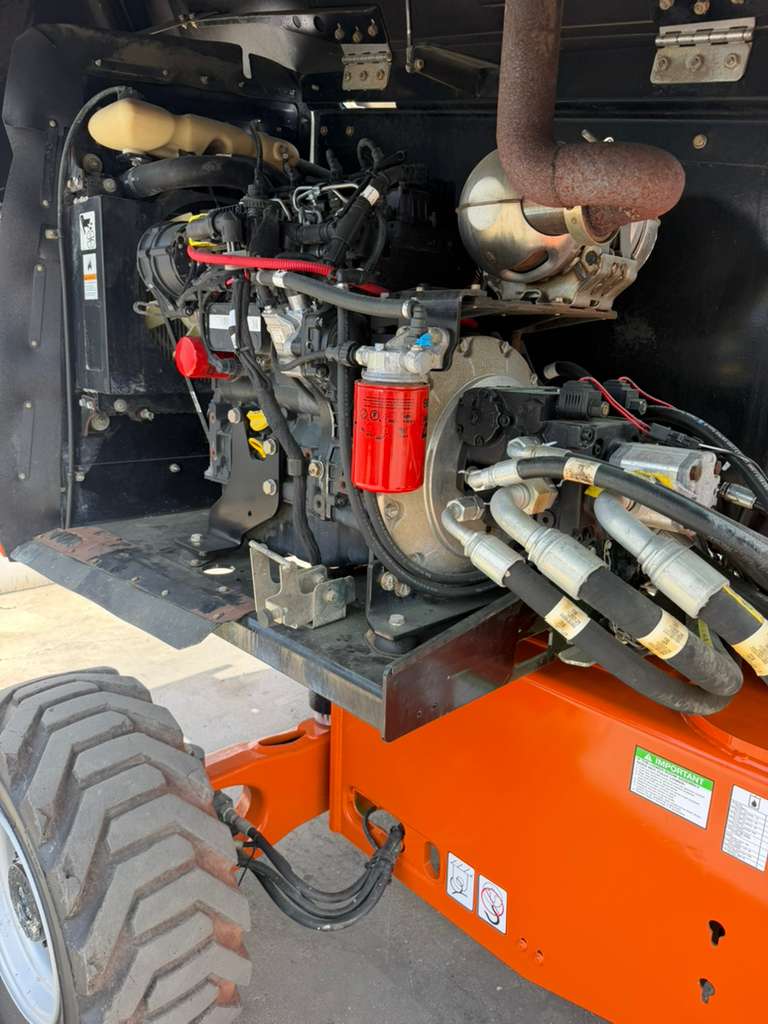

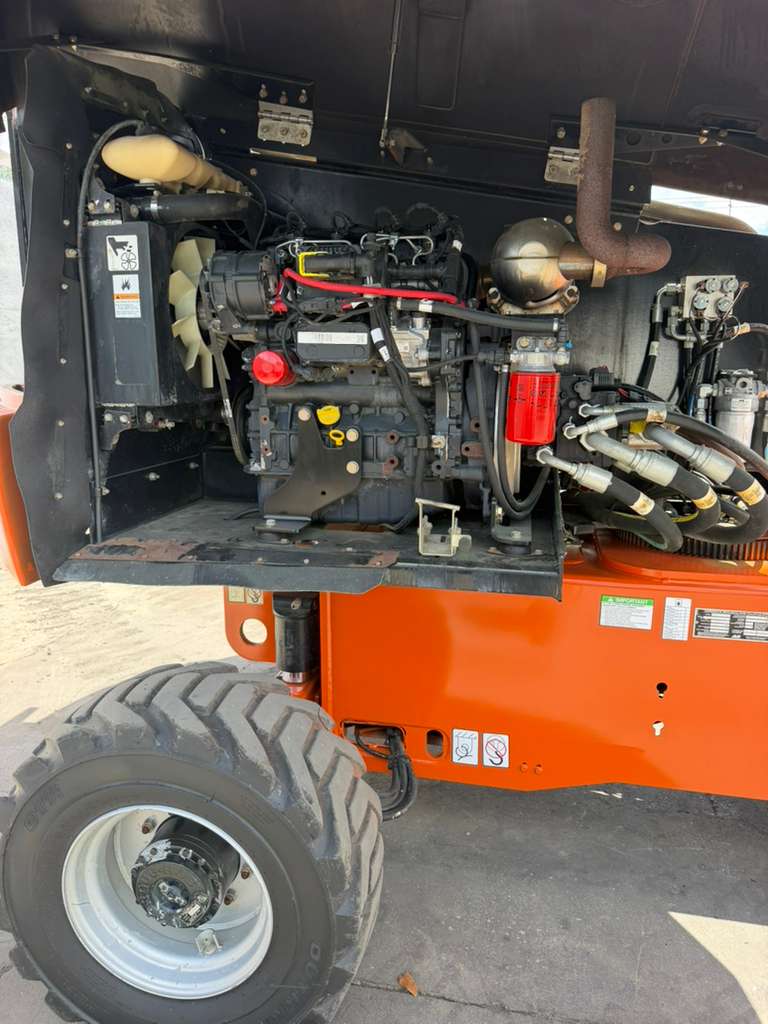

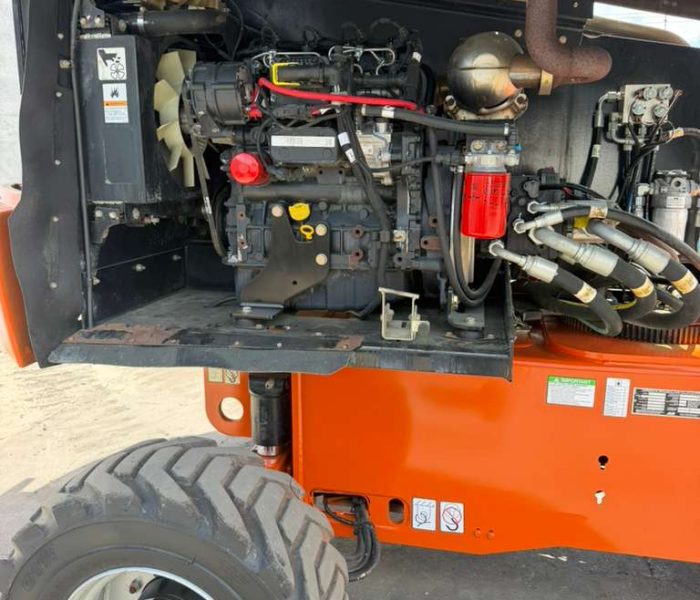

• Diesel (Deutz D2.9L4 Tier 4 Final – 49 HP)
• Fuel Tank Capacity: 22 gallons
• Hydraulic Reservoir Capacity: 36 gallons
• Auxiliary Power: 12V DC

Approximate Dimensions & Weight

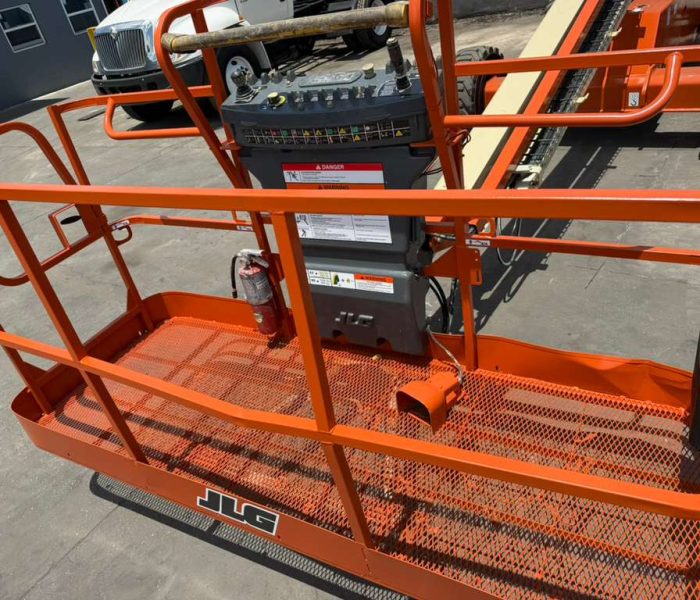

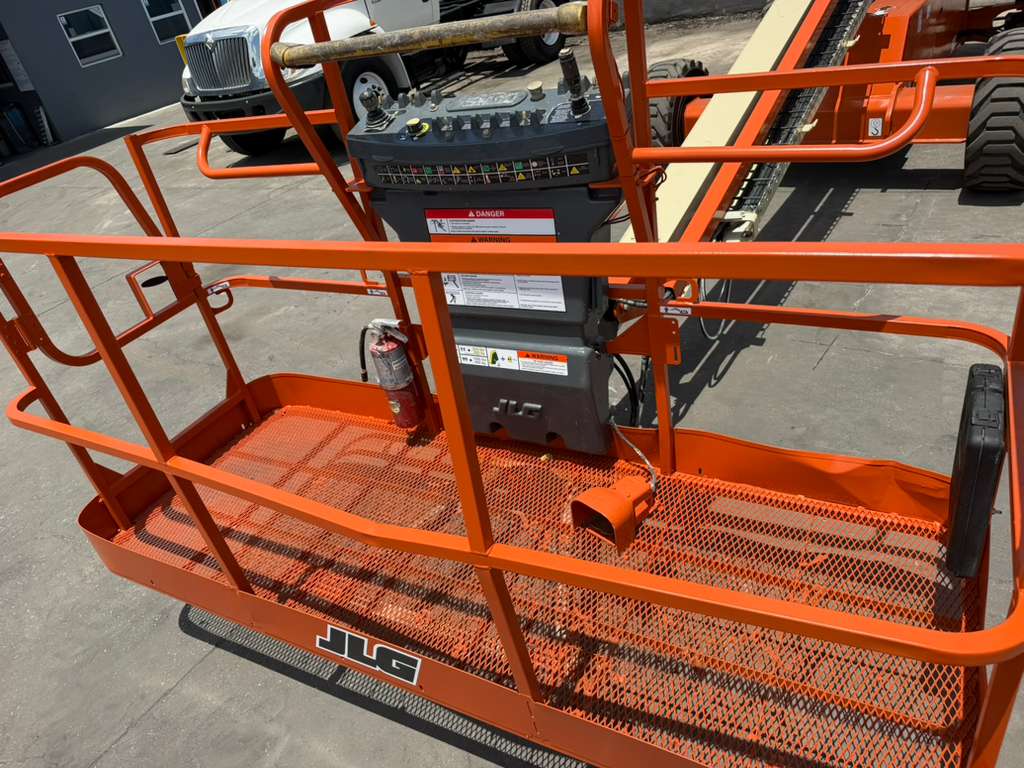

• Platform Width: 36 in
• Machine Width: 7 ft 6.8 in
• Machine Height: 8 ft 1.4 in
• Machine Length: 24 ft 10.1 in
• Wheelbase: 7 ft 9.5 in
• Tail Swing: 2 ft 10 in
• Operating Weight: 13,640 lb

Ideal Applications

This JLG Industries 400S telescopic boom lift delivers the perfect combination of reach, lifting capacity, and rugged reliability. It is highly recommended for:

• Commercial construction and steel erection
• Building maintenance and facility management
• Industrial plants and manufacturing facilities
• Electrical, HVAC, and mechanical installation
• Warehousing, utility, and municipal projects

Ready to safely elevate your workflow? Contact us today to learn more about this boom lift, and explore our full inventory of aerial lifts, heavy equipment, and attachments to get the job done right.
