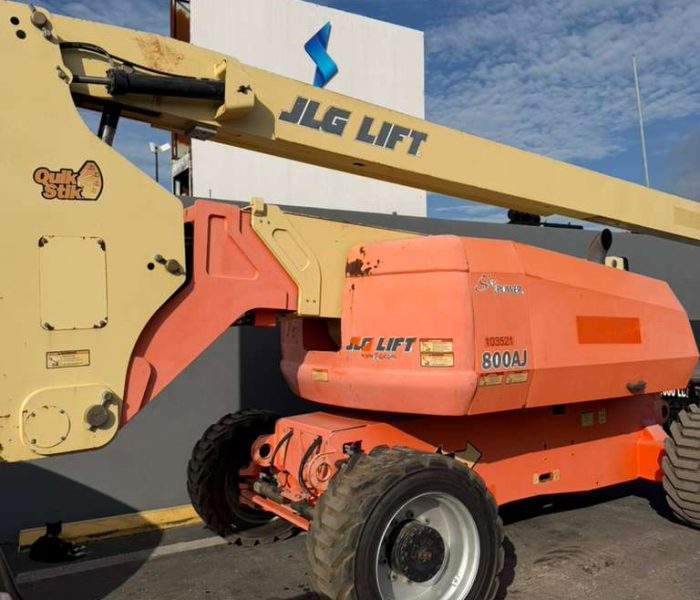

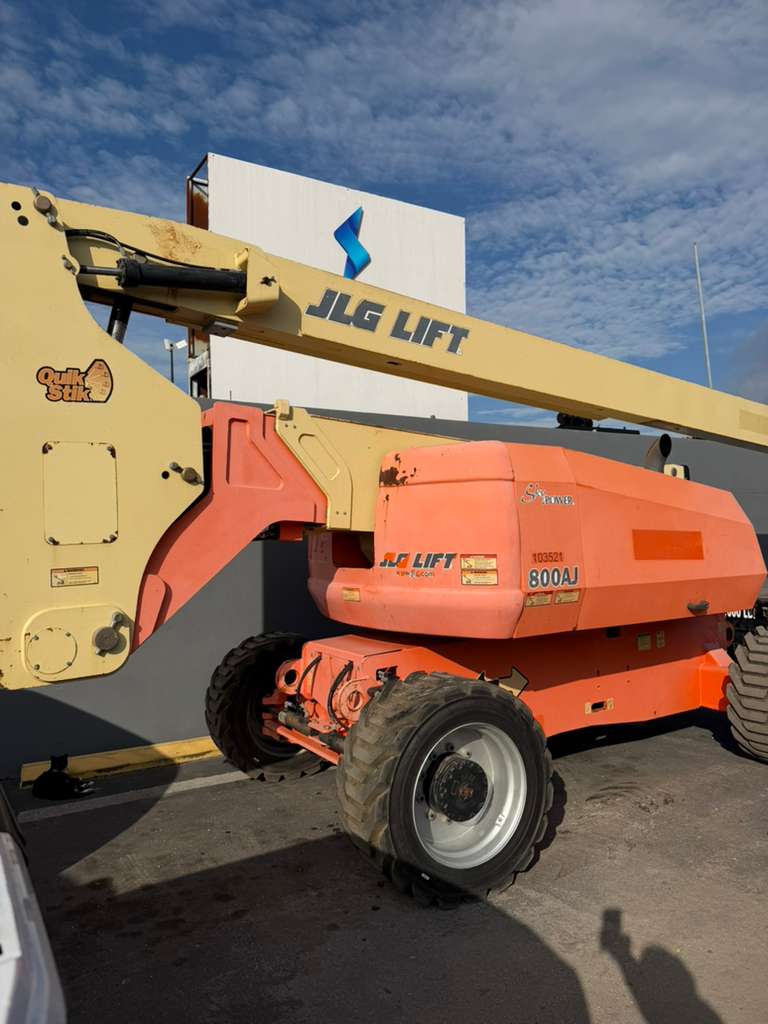

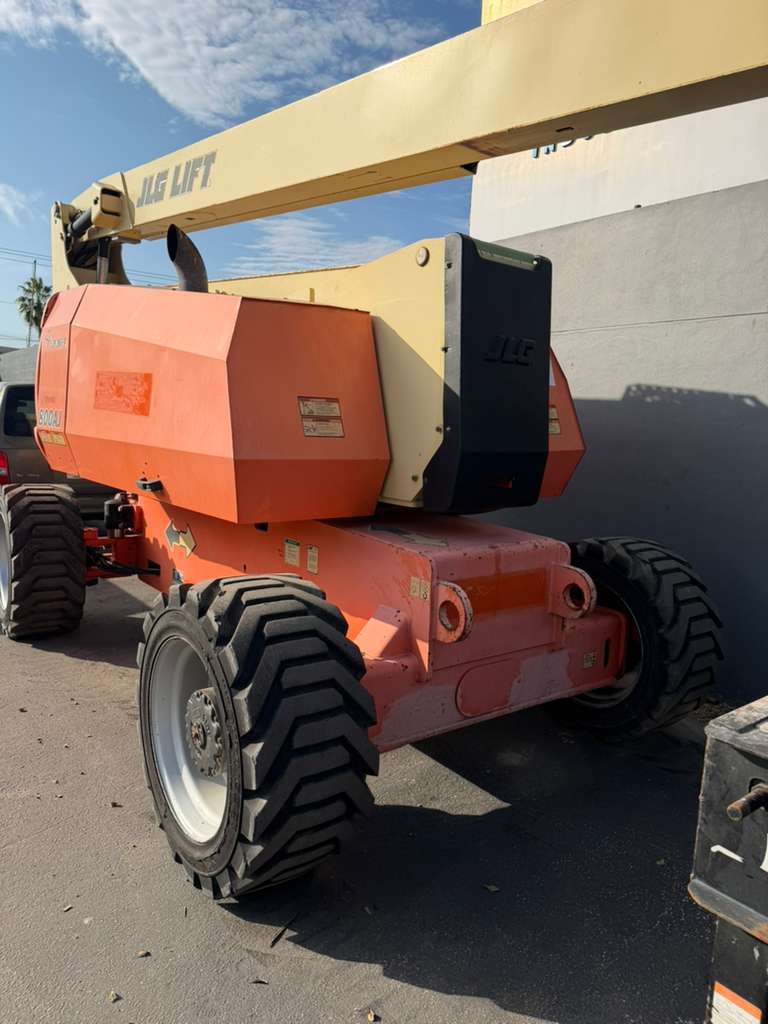

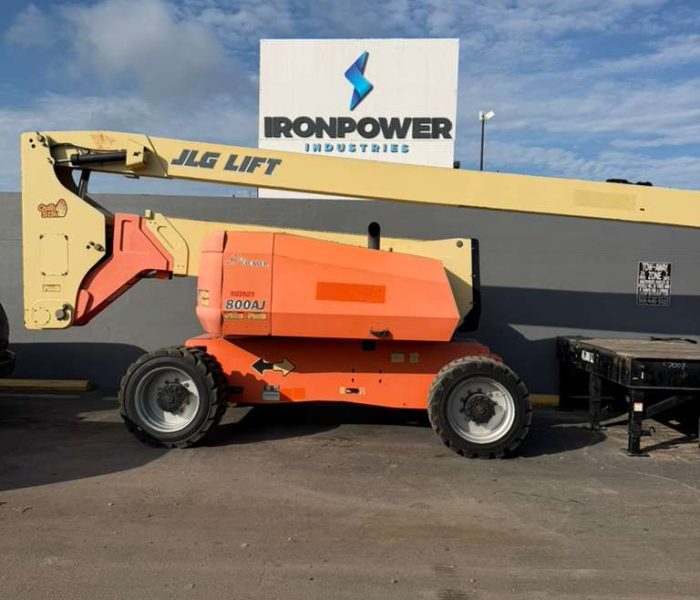

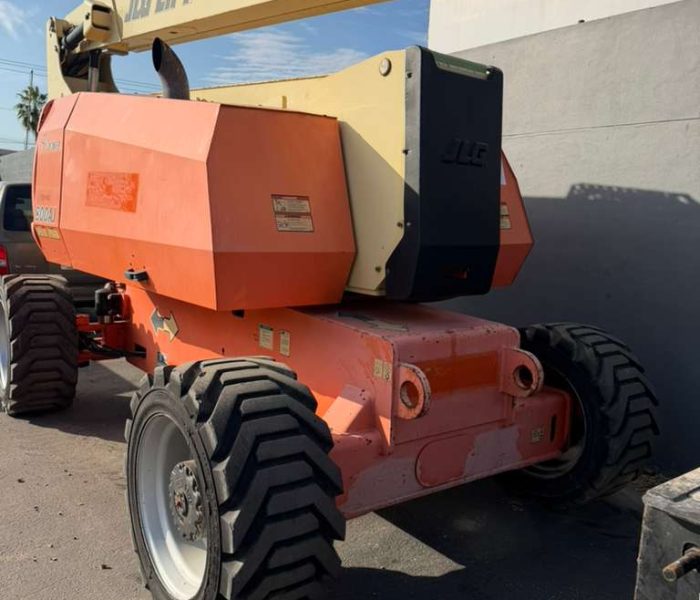

2016 JLG 800AJ 80′ Articulating Boom Lift – Low Hours, 80 ft Reach

This 2016 JLG 800AJ articulating boom lift delivers exceptional reach, stability, and performance for construction, industrial, and maintenance applications. With only 1,500 hours, this unit has seen light use, is fully operational, and is job-site ready.

Built for demanding job sites, this lift offers outstanding reach, smooth articulation, and dependable diesel power to get your crew safely to the working area. Elevate your project’s efficiency by exploring our full inventory of articulating and telescopic boom lifts.

2016 JLG 800AJ Technical Overview

Key Features & Benefits

• Low Hours: Exceptionally low usage with only 1,500 hours, ensuring a long remaining service life.
• Articulating Reach: Provides a 32 ft 1 in up-and-over clearance to easily navigate around jobsite obstacles and structures.
• Continuous Swing: 360° continuous rotation allows for maximum positioning efficiency without needing to move the base.
• Reliable Deutz Engine: Delivers 64.4 HP of proven diesel power and excellent 45% gradeability.
• Jobsite Ready: Fully inspected, operational, and available for immediate nationwide delivery.

Reach & Performance Specifications

• Maximum Platform Height: 80 ft 0 in
• Maximum Working Outreach: 53 ft 10 in
• Horizontal Outreach: 51 ft 10 in
• Up & Over Clearance: 32 ft 1 in
• Platform Capacity (ANSI): 500 lb
• Gradeability: 45%
• Swing: 360° continuous
• Maximum Travel Speed: 3 mph

Engine & Capacities

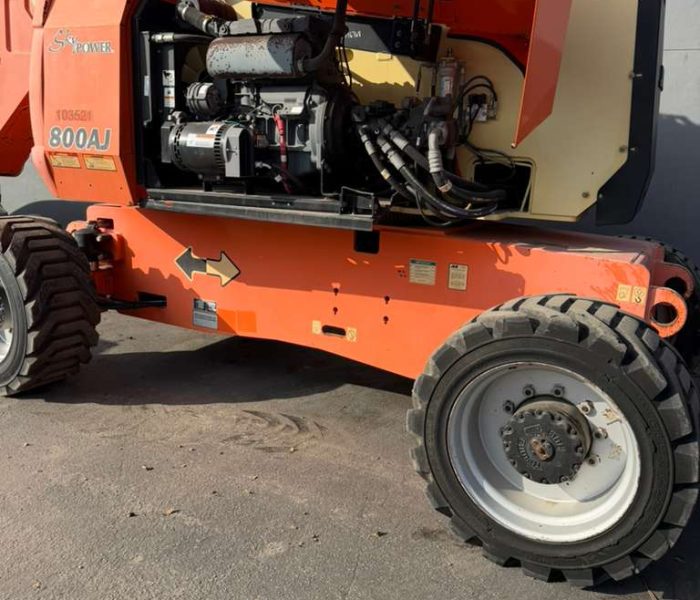

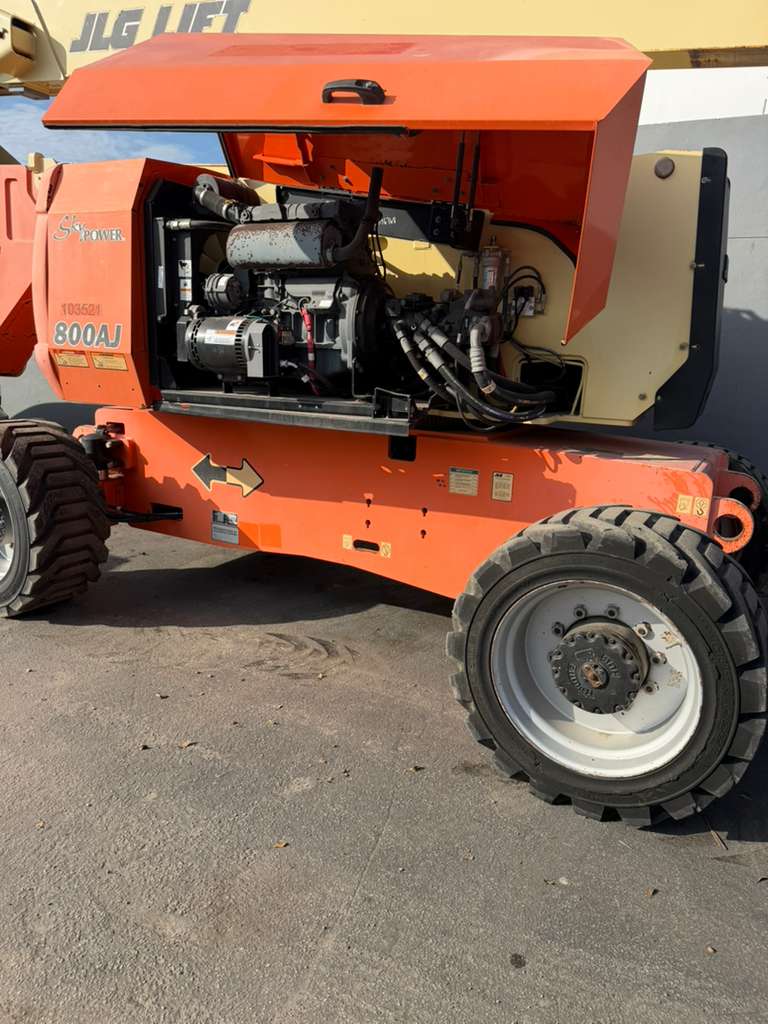

• Engine: Deutz Diesel
• Gross Power: 64.4 HP
• System Voltage: 12V
• Fuel Tank Capacity: 39 gal
• Hydraulic System Capacity: 40 gal

Dimensions & Weight

• Overall Length: 36 ft 6 in
• Overall Width: 8 ft 1 in
• Overall Height (Mast Lowered): 9 ft 10 in
• Operating/Machine Weight: 34,738 lb
• Tires: 445/55D x 19.5 (Pneumatic)

Ideal Applications for the JLG 800AJ

This JLG 800AJ provides the perfect combination of height, reach, and articulation. It is an indispensable asset for contractors and facilities, highly recommended for:

• Commercial Construction: Safely lifting workers and tools to elevated areas with complex structural frameworks.
• Industrial Maintenance: Navigating over heavy machinery and pipelines in refineries or manufacturing plants.
• Steel Erection: Providing a stable, high-capacity platform for welders and ironworkers.
• Facility Management: Exterior building maintenance, painting, and window installation.

Looking for different reach capacities? Browse our complete catalog of reliable JLG aerial lifts, and be sure to ask our team about our flexible equipment financing plans to get this articulating boom lift onto your site without delay.
