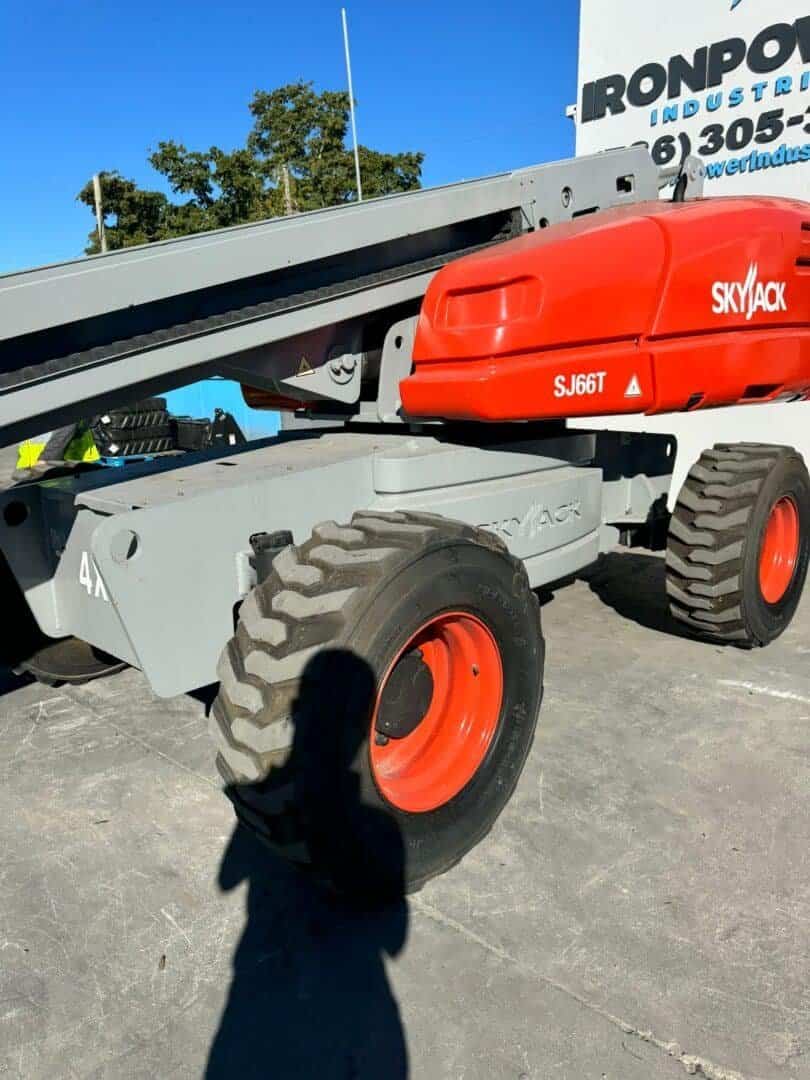

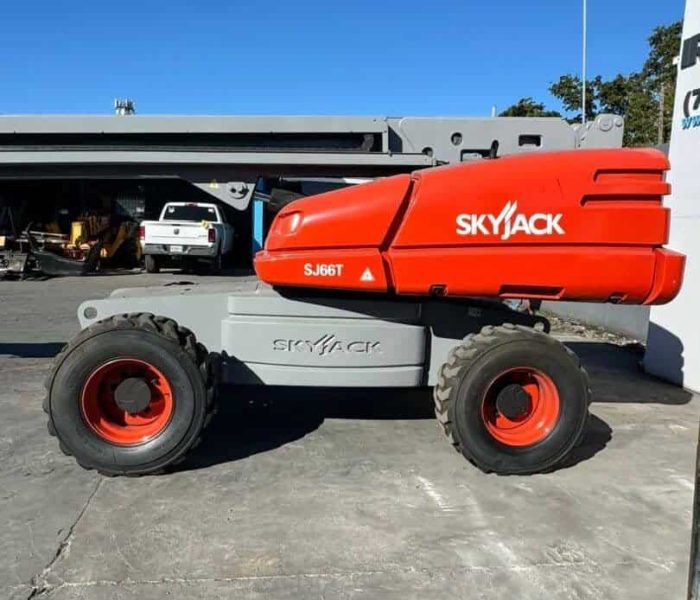

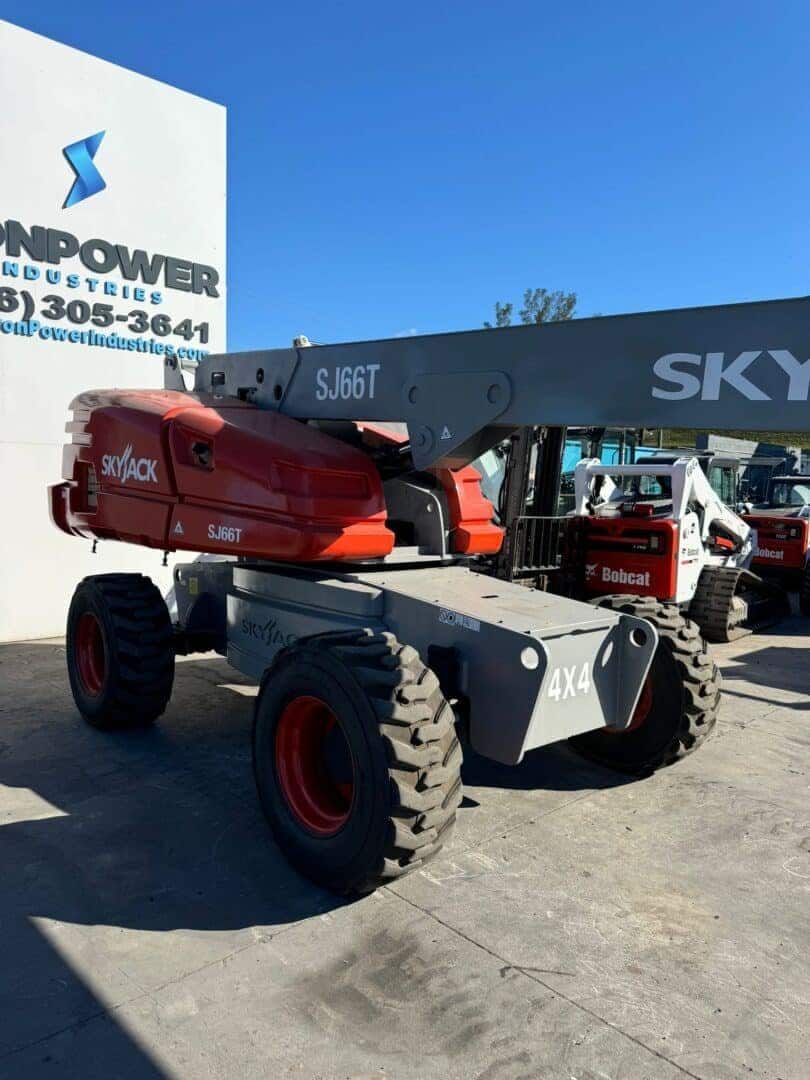

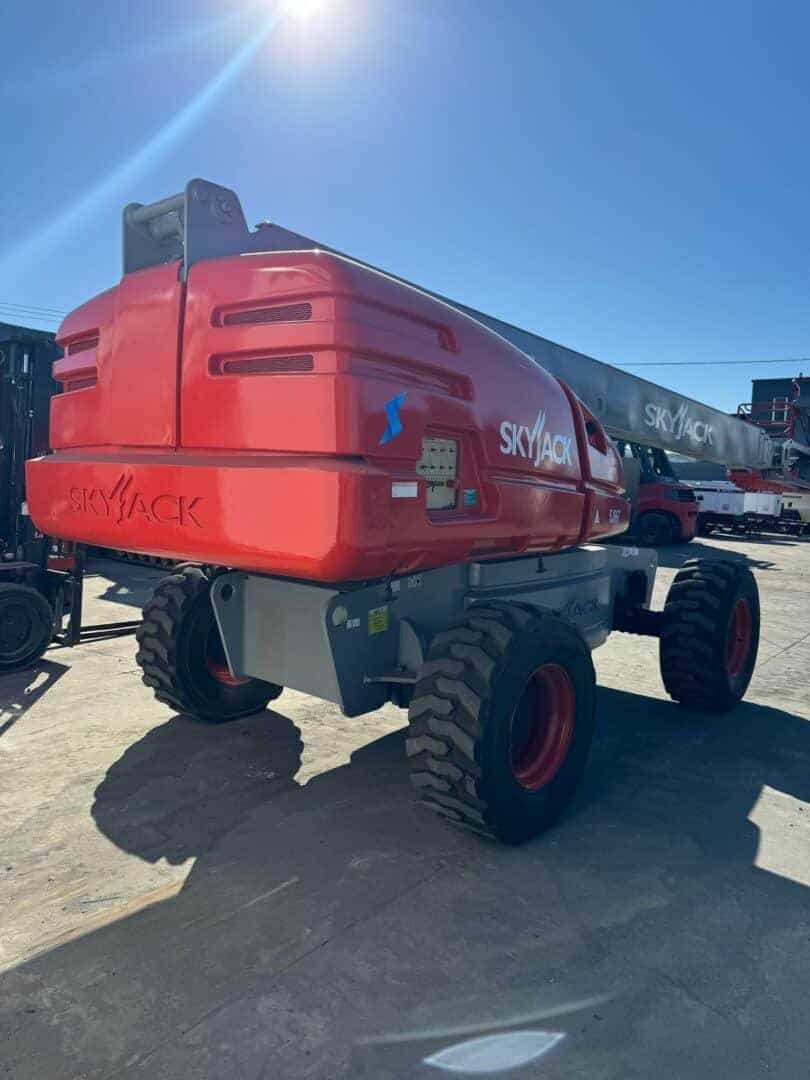

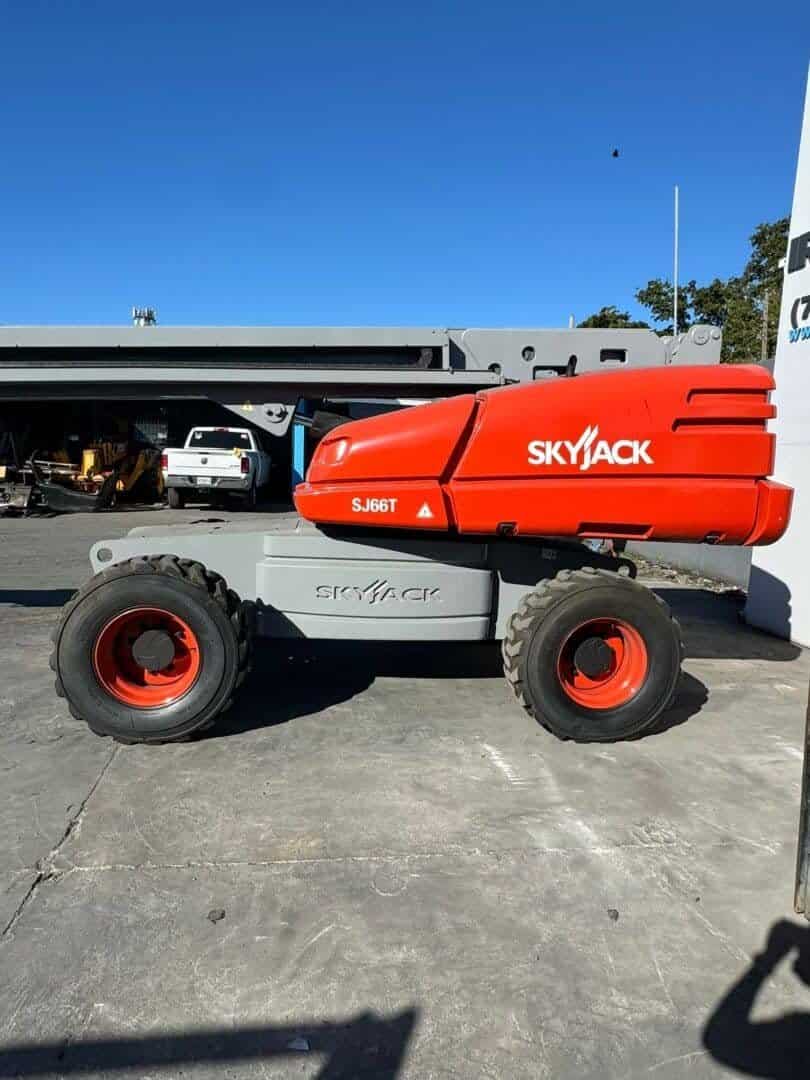

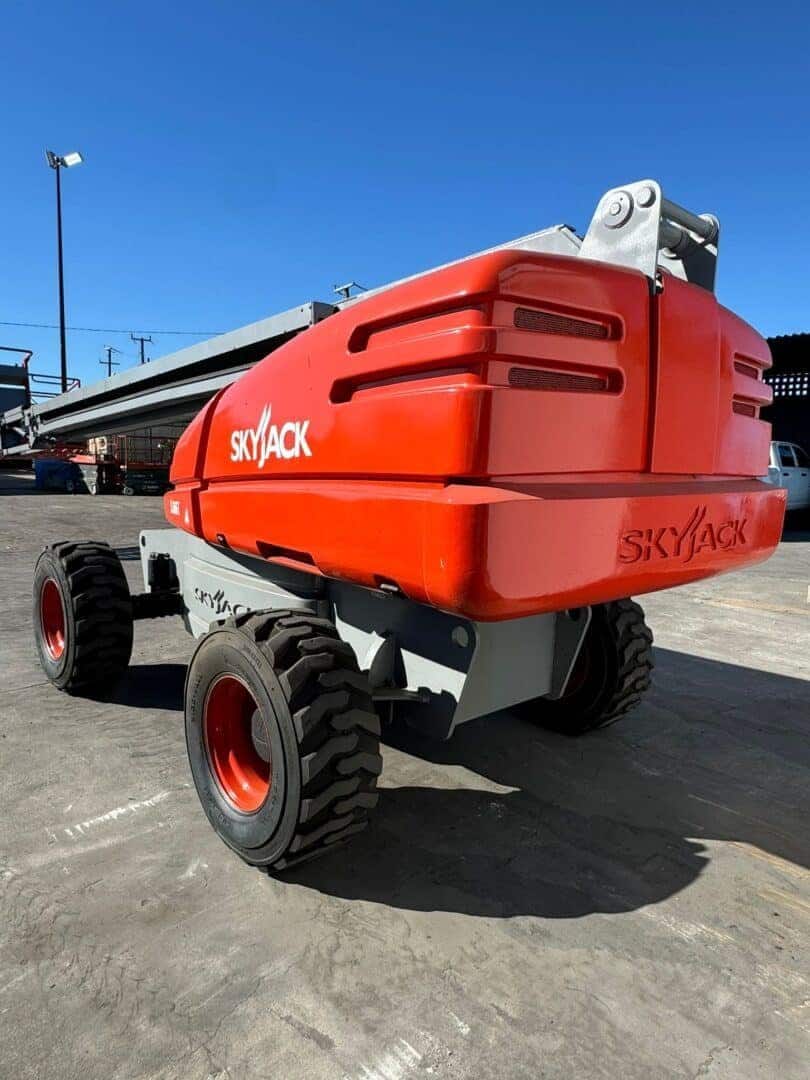

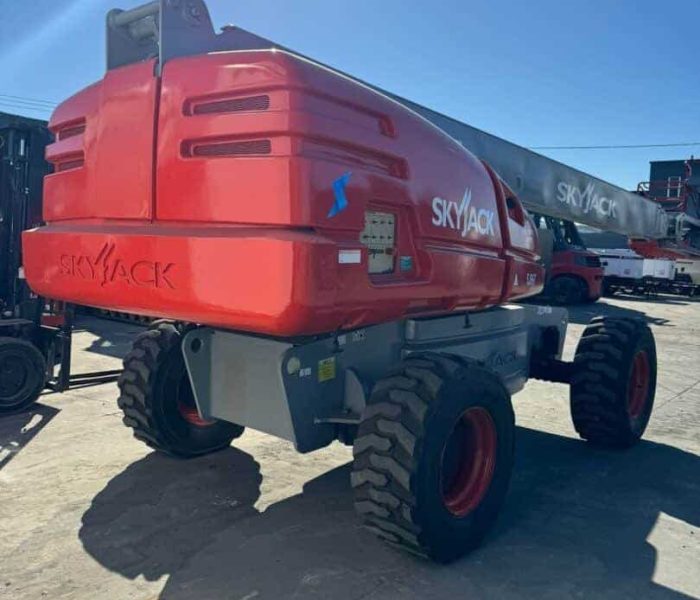

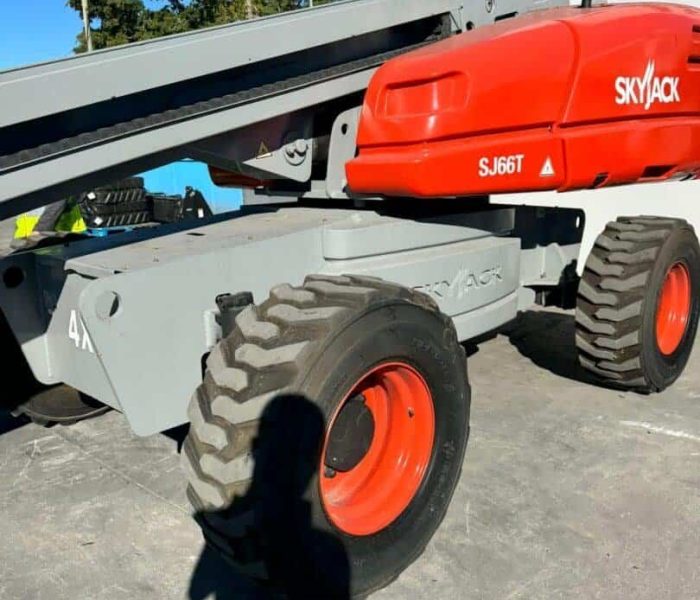

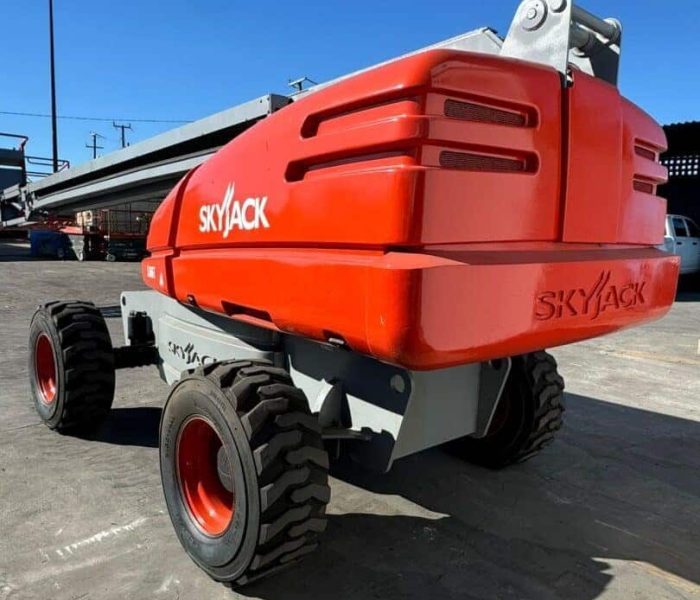

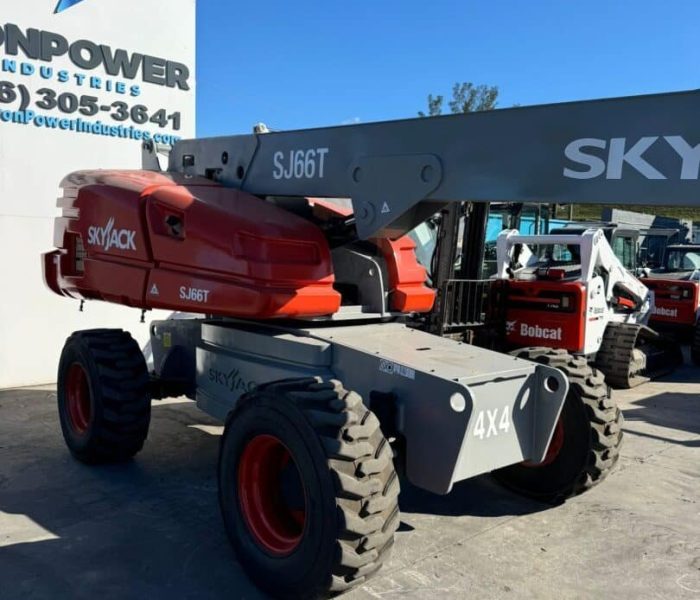

Skyjack SJ66T 4WD Diesel Telescopic Boom

Skyjack SJ66T 4WD Diesel Telescopic Boom

Item SKU: 141010

Year: 2014

Model: SJ66T

Work Height: 72’ (21.95 m)

Platform Height: 66’ (20.12 m)

Up and Over Height

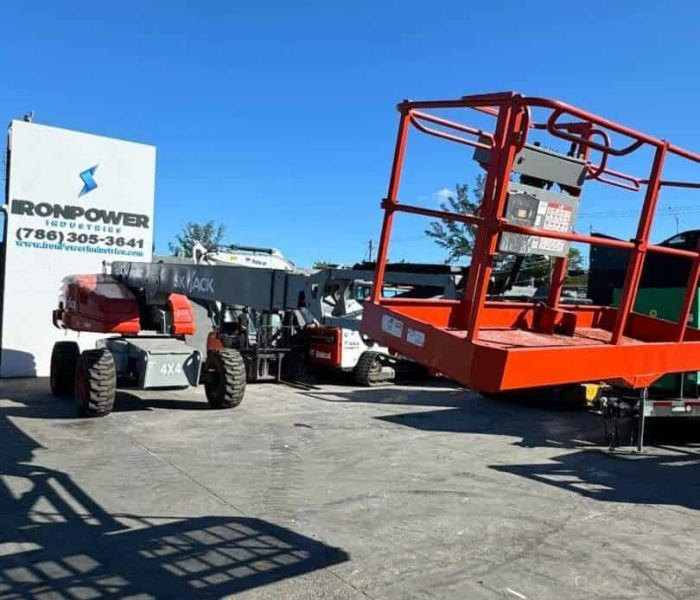

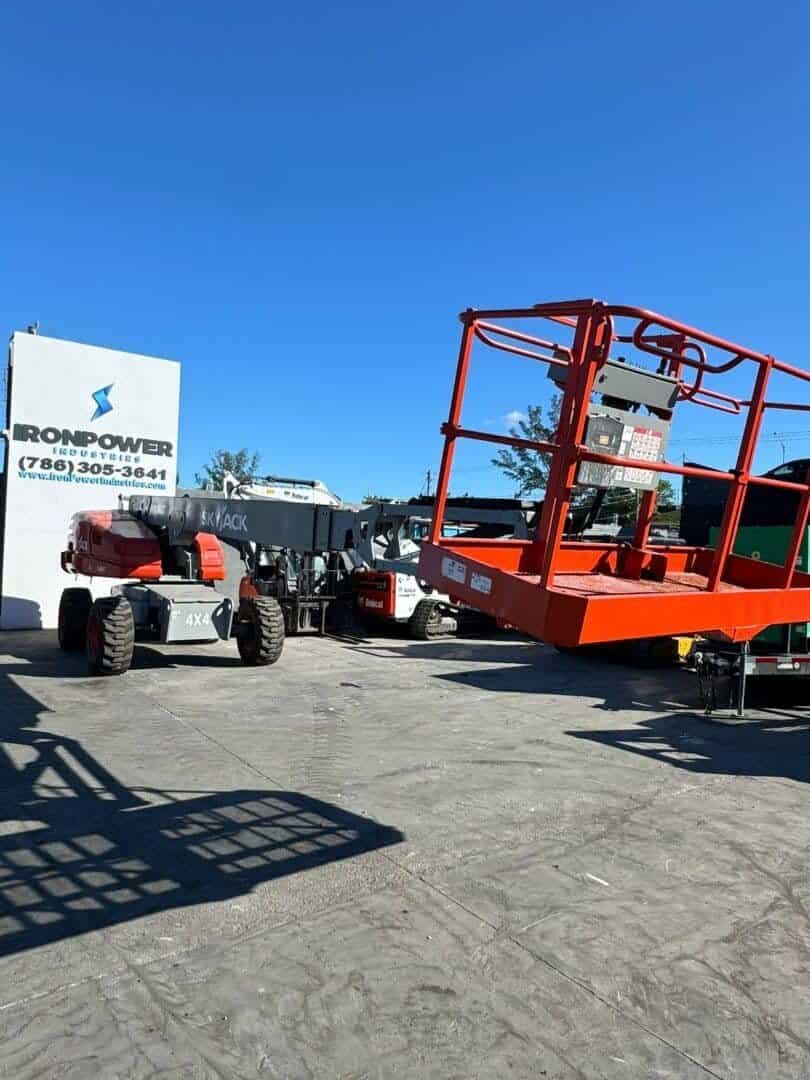

Platform Size: 36” x 96” (0.91 x 2.44 m)

Stowed Width: 8′ (2.44 m)

Tailswing: 3′ 11” (1.19 m)

Stowed Height: 8′ 5” (2.57 m)

Transportation Height: 10′ 10″ (3.30 m)

Stowed Length: 33’ 11” (10.34 m)

Transportation Length: 8.13 m

Ground Clearance: 16” (0.41 m)

Wheelbase: 8’” (2.44 m)

Rotation 360° Continuous

Platform Rotation       170°

Jib Length        5’ (1.5 m)

Jib Range +/-   +65° / -60°

Weight: 26,700 lbs (12,111 kg)

Gradeability: 50%

Turning Radius (Inside): 9′ 3″ (2.82 m)

Turning Radius (Outside): 16′ 7″ (5.05 m)

Axle Oscillation: 3” (7.62 cm)

Drive Speed (Stowed): 4.5 mph (7.2 km/h)

Capacity: 500 lbs (227 kg)

Horizontal Reach: 57’ (17.37 m)

Local Floor Load (With Rated Load): 145 psi (10.19 kg/sq cm)

Overall Floor Load (With Rated Load): ”304 psf (1,484 kg/sq m)

Maximum # of Persons           2

Tire Type: Air Filled

Tire Size: 15 x 19.5

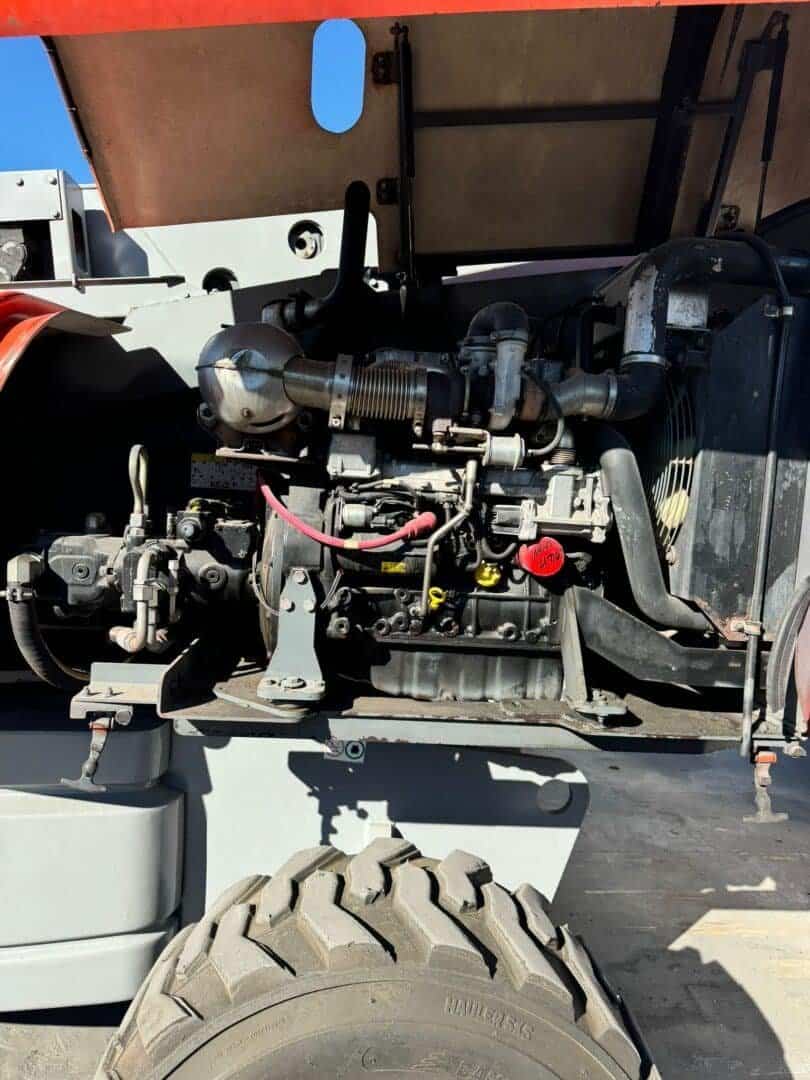

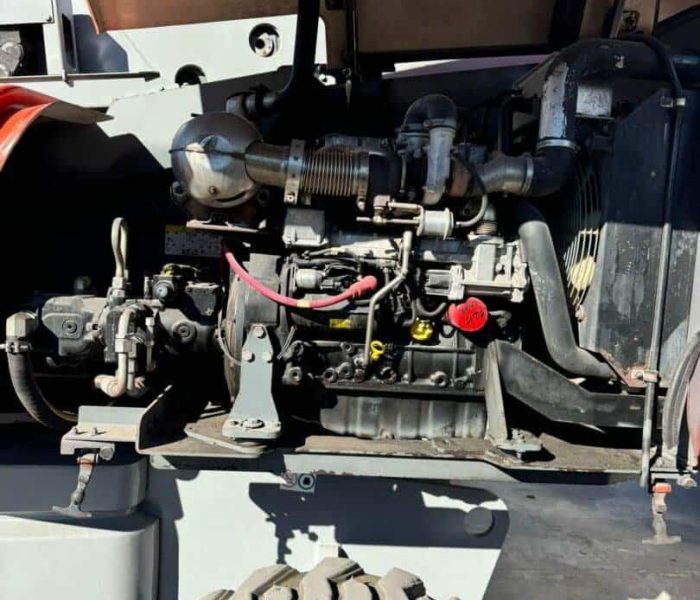

Diesel Engine: 74 HP

Dual Fuel Engine: 61 HP

Fuel Tank: 45 gallon (170 L)

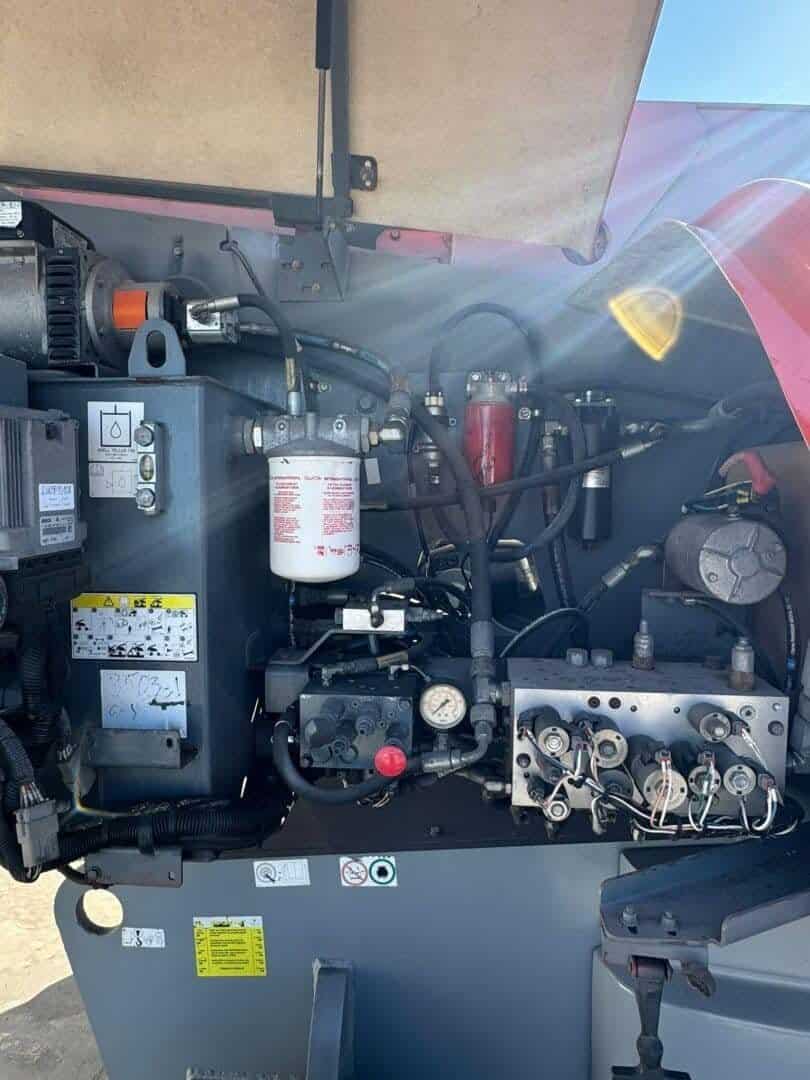

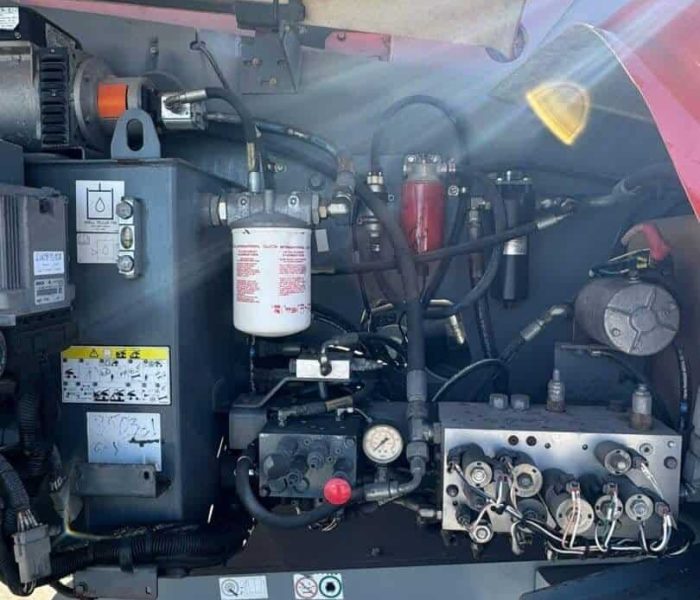

Hydraulic Reservoir   60 gallon (227 L)
